DR04 Forged Wheel — DR Series Monoblock
The DR04 is drawn with edges rather than curves, and it shows more caliper than anything else in the DR series. That is either the reason to buy it or the reason not to.
Why this face

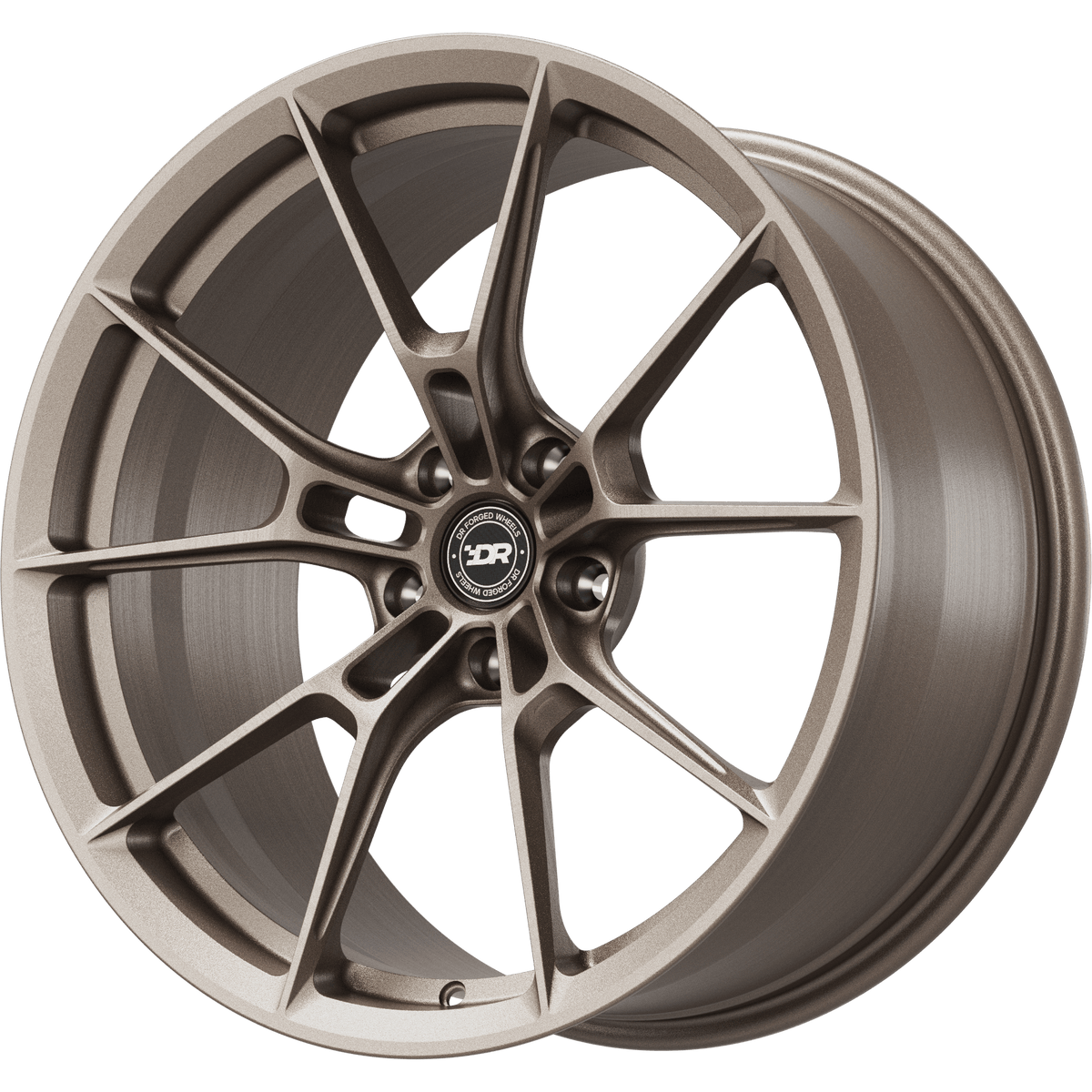

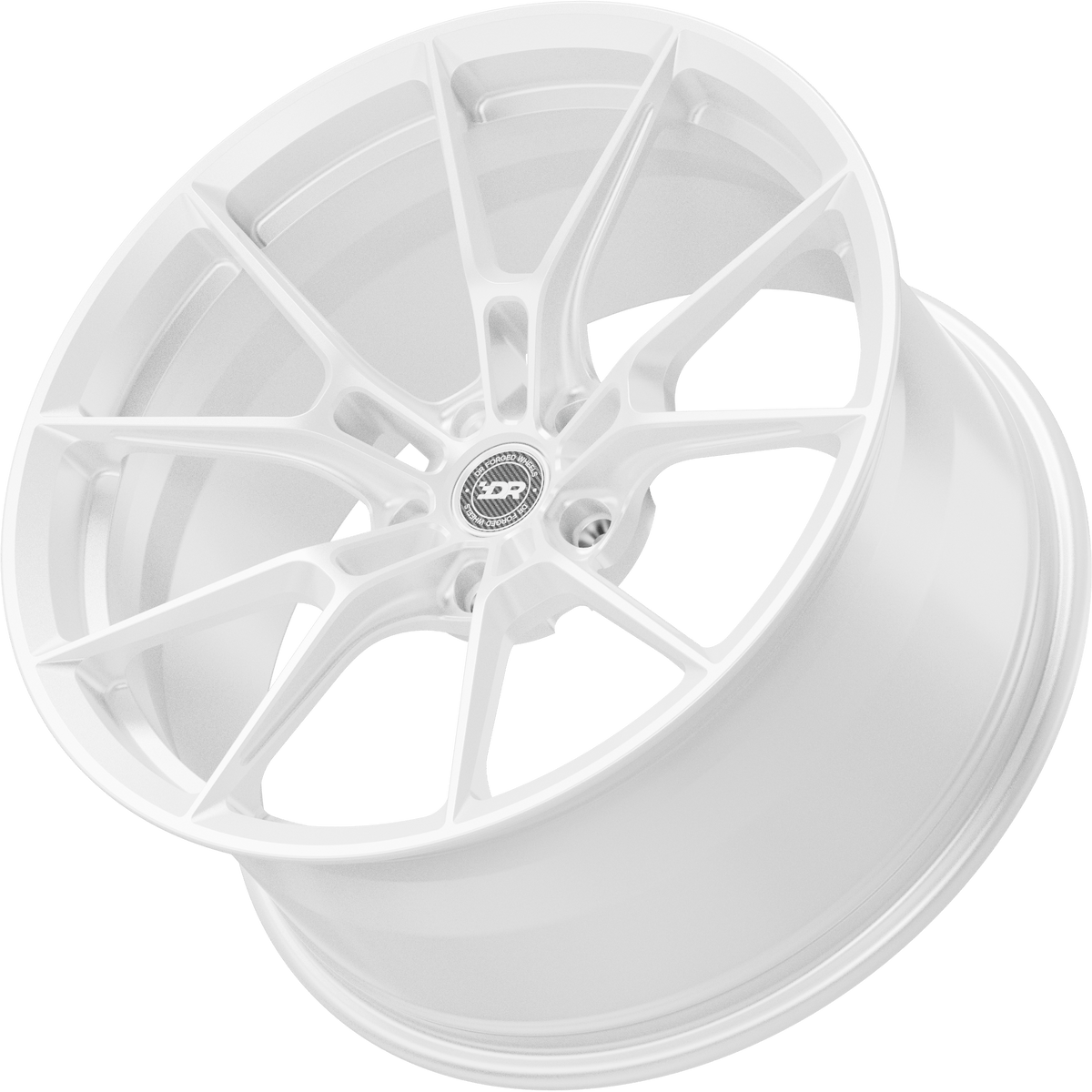

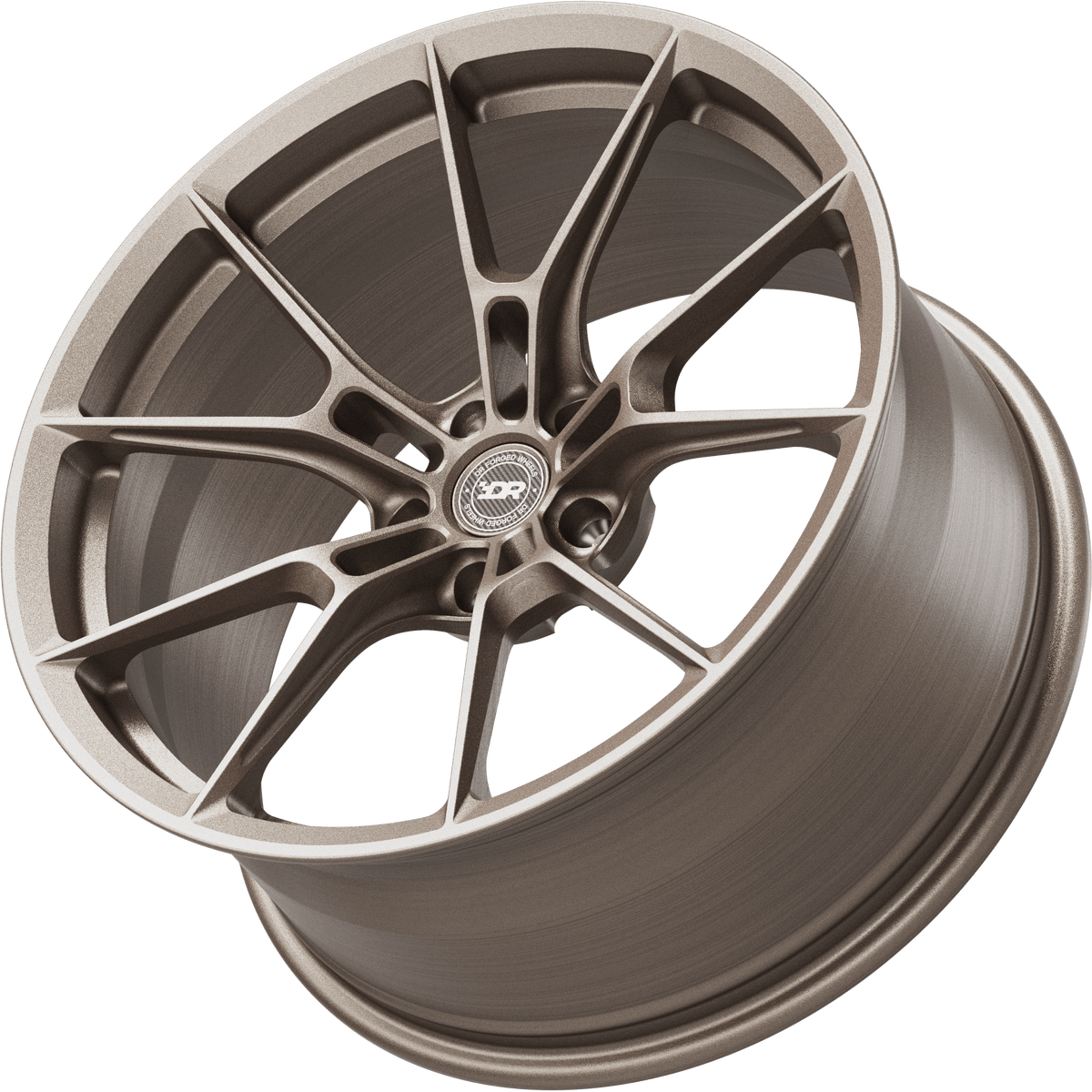

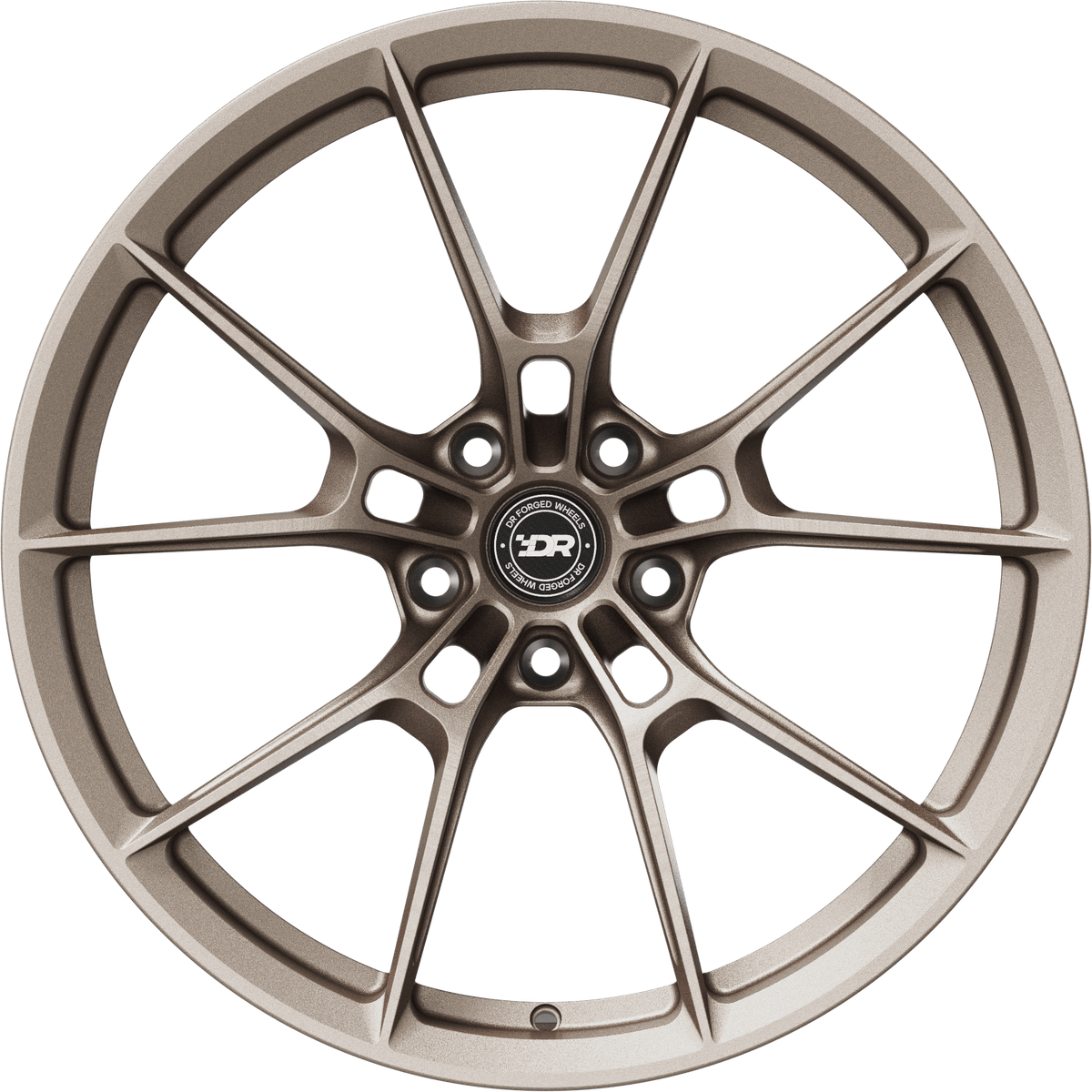

Each of the five spokes carries a hard crease down its top face, and about two thirds of the way out the crease opens into a sharp V that puts two knife-edged branches onto the rim. Ten landings, all of them narrow, and the window between adjacent spokes is enormous by comparison. The hub pad is pierced with five oval cut-outs sitting between the lug seats — small, and on a polished or transparent finish they are the detail people notice second, after the creases catch a highlight and drag it along the spoke as the wheel turns.
Will it fit your car
Cut to your car. In plain model terms: the E46 and E9x cars, the F30 and F32 3- and 4-series, the 2015–2020 M3 and M4, the 2019-up 3-series, the 2021-up M3 and M4, the current Z4, F-series MINI and the classic R53 and R56. BMW does not use one bolt pattern across that range — pick your car in the configurator above and the pattern and hub bore set themselves. Front M-Sport calipers clear with no spacer.
Buying it from us
We are an authorized DR Forged dealer and a tuning shop — which is the part that matters on a wheel that gets cut once and cannot be exchanged. Before your order releases to production we validate bolt pattern, offset, width and brake clearance against your specific car. No supporting modifications required. Staggered sets are two line items: set the front, add it, then change width and offset and add the rear. We are in Boca Raton, Florida, and your set ships freight from here.
Spec
- Diameters — 17, 18, 19, 20, 21, 22 in
- Widths by diameter — 17in: 6.5–11 · 18in: 7.5–11 · 19in and 20in: 8–12 · 21in: 8–13 · 22in: 9–12
- Weight — 18–26 lb per wheel by size
- Bolt patterns — 5x120, 5x112, 5x108, 5x110, 5x130 and 4x100, cut to your car
- Brake clearance — M-Sport front calipers, no spacer
- Finishes — 40, gloss or matte, none of them an upcharge
- Lead time — 6 to 8 weeks, every wheel built to order
Frequently asked questions
What bolt pattern does my BMW need?
It depends on the car, and BMW is not consistent about it. E- and F-chassis BMWs run 5x120. G-chassis BMWs run 5x112 — that includes the 2021-up M3 and M4. F-series MINI is 5x112; classic R53 and R56 are 4x100. We confirm it against your car before anything is cut.
How long does a DR04 take to build?
Six to eight weeks. Every DR Forged wheel is machined to your bolt pattern, width and offset — there is no stock to pull from. The clock starts when we lock the spec sheet with you.
Will the DR04 clear my big brake kit?
It clears M-Sport front calipers with no spacer as standard. For an aftermarket big brake kit, send the kit make and model at intake and we check bridge height and spoke clearance before the order releases.
Same face, other constructions: the DR04-CL centerlock monoblock. Construction changes weight, fitment range and the look of the joint — not the drawing.
See the full DR Forged range — nine series, four constructions, every wheel cut to one car.
CUSTOM MANUFACTURED Built to your spec. We'll confirm details by phone before production. Lead time 6–8 weeks after confirmation.
SHIPPING Ships freight from Boca Raton, FL — additional fees may apply at checkout.
How this wheel is built.
Every DR Forged wheel is made to order, not pulled from a shelf. The center is 6-axis CNC-machined from a forged 6061-T6 aluminum billet, in a one-piece monoblock or a two-piece modular build depending on the model. We spec each one to clear factory BMW M-Sport brakes, so the fitment is matched to the car rather than left generic.
Width and offset are cut to your spec, with finish and diameter chosen at order. Because these are built to order, plan on a lead time of 6 to 8 weeks rather than next-day stock. Staggered front/rear setups are common — configure the front spec, add to cart, then change width and offset and add the rear.
