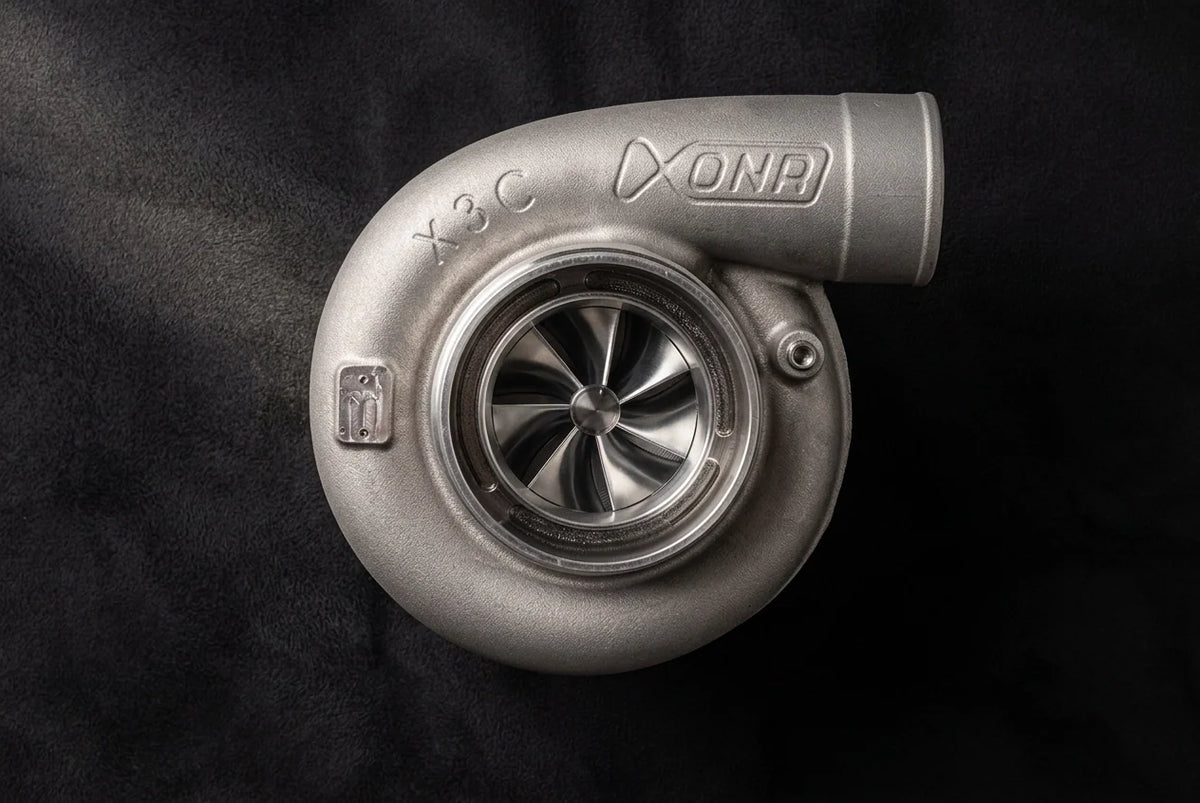

Xona XRC6264S turbocharger for BMW B58
XONA ROTOR · BALL-BEARING TURBO

Xona XRC6264S — B58

$2,865.60

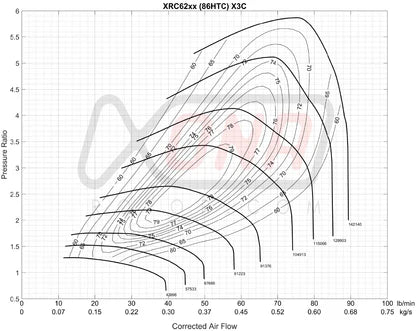

The Xona XRC6264S is a ball-bearing turbocharger built on the XR64S UHF 64mm turbine wheel. Compressor: 62mm inducer / 86mm exducer; 88 lb/min rated flow; published range 500–880HP. The XRC6264S is the largest compressor stage in the XR64S group and the peak flow option in the Esse Werks Xona lineup. Configured here for the BMW B58.

Turbine housing — Material, Flange, and A/R — is selected using the guided cascade above. Compressor cover (X2C or X3C) and SwainTech coating are also selected above.

SwainTech White Lightning thermal barrier coating is available on the turbine housing (hot side), compressor housing (cold side), or both. Ordered BYO Core? We will contact you after purchase with shipping instructions. Approximately three-week build turnaround from receipt of your core.

Material

Ships from Boca Raton, FL.

WHY WE SHIP XONA ROTOR
We carry Xona Rotor for builds where the power target has outgrown what OEM or direct-replacement turbos can support. Their specs are published in engineering terms — inducer diameter, rated lb/min airflow, turbine outlet size, housing A/R — and the model names encode those specs directly, so there is no guessing what you are ordering. These are not bolt-on upgrades: all BMW applications require custom intake manifold and downpipe adaptation, and housing configuration is chosen per build. We specify that configuration when you contact us.
