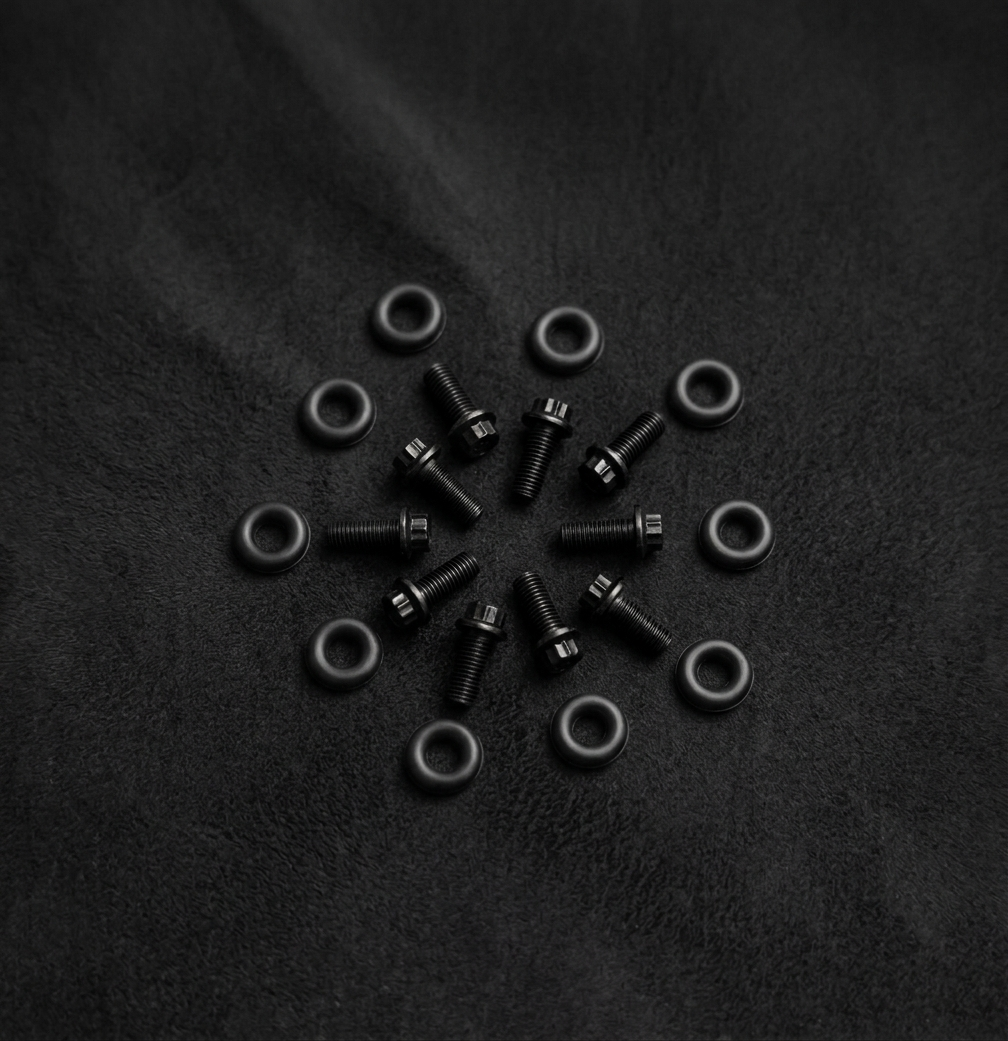

ARP differential ring gear bolt kit for BMW MINI B48 F-chassis

Esse Werks Differential Ring Gear Bolt Kit — BMW/MINI F

$95.00

Esse Werks differential ring gear bolt kit, manufactured by ARP to ARP2000 spec, for the BMW/MINI transverse-platform differential. Replaces the OEM torque-to-yield bolts BMW specifies for one-time use only — bolts that are not safe to reuse on reassembly.

Why TTY bolts fail at diff rebuilds

The OEM ring gear bolts are torque-to-yield by design. They're stretched past their elastic limit on initial torque-down, which creates even clamping force across the ring gear face but consumes the bolt's ability to stretch a second time. Reuse them on an LSD install or a service teardown and they either lose clamp force — gear face slips, hammer wear starts on the ring — or they break in the head during the second torque application. BMW's service manual is explicit: replace TTY bolts on every reassembly. ARP2000 is the more durable answer.

What ARP2000 brings

  • Tensile strength ~220,000 psi — well above the OEM TTY bolt's working range
  • Reusable — proper torque-to-spec with ARP's ULTRA-TORQUE lubricant; no stretch-to-yield needed
  • Holds clamp under thermal cycling — track-temperature differential rebuilds stay clamped where OEM bolts have been observed to back off
  • Same thread pitch and head geometry as the OEM bolt — no tooling changes at install

What's in the kit

  • 10 × ARP2000 ring gear / diff cover bolts, M10×1.0 thread
  • ARP ULTRA-TORQUE assembly lubricant
  • Torque sequence and spec sheet

Fitment

BMW and MINI transverse-platform differential — found across the F-series UKL2 chassis lineup:

  • MINI F-series — F54 Clubman, F55, F56, F57, F60 Countryman
  • BMW F-series — F39 X2, F45 / F46 2-series Active & Gran Tourer (EU), F48 X1

Confirm OEM bolt part numbers against your specific differential before ordering. BMW issued running revisions to the OEM TTY bolts mid-platform. This ARP2000 kit covers both revisions. If you're on a G-chassis (longitudinal RWD / xDrive) BMW with a different differential casting, this kit does not fit — contact sales@essewerks.com and we'll source the right ARP kit for your application.

Install

0.5 hrs assuming the differential is already out of the car — LSD install, gear set change, service teardown. Use the included ARP ULTRA-TORQUE lubricant on threads and under the bolt head, follow ARP's torque sequence, torque in three passes per the included spec sheet.

What this kit does not include

Bolts only. A complete diff reassembly typically also requires pinion crush sleeve, pinion seal, axle seals, and ring-gear-to-carrier shims — all sourced separately. Esse Werks can quote the full hardware list at intake.

ARP × Esse Werks. Manufactured by ARP (Automotive Racing Products, Ventura, California — Made in the USA). Esse Werks spec, ARP build, ARP manufacturer warranty pass-through.

Fits engines B46 · B48
Fits chassis F39 · F45 · F46 · F48 · F54 · F55 · F56 · F57 · F60
Category Hardware
Manufacturer ARP × Esse Werks
Install effort ~0.5 hours

Ships from Boca Raton, FL.

BUILD STORY

Why we made it

High-torque builds kept finding the same weak point: the factory differential ring gear bolts were never sized for the clamp load a tuned driveline puts through them. We specified a bolt kit to fix it and worked with ARP, whose fasteners we already trust on head studs and rod bolts, to produce it for the BMW/MINI F-series diff. It is the hardware we wished came in the box, with documented clamp load, consistent part to part, on the one fastener you never want to revisit.
