CSF Level-Up charge-air-cooler manifold for BMW S58 G8x M3 M4 G87 M2 X3M X4M
CSF

CSF "Level-Up" Charge-Air-Cooler Manifold — S58 (G8x M3/M4, G87 M2, X3 M / X4 M)

$5,499.00 $6,799.00 19% OFF

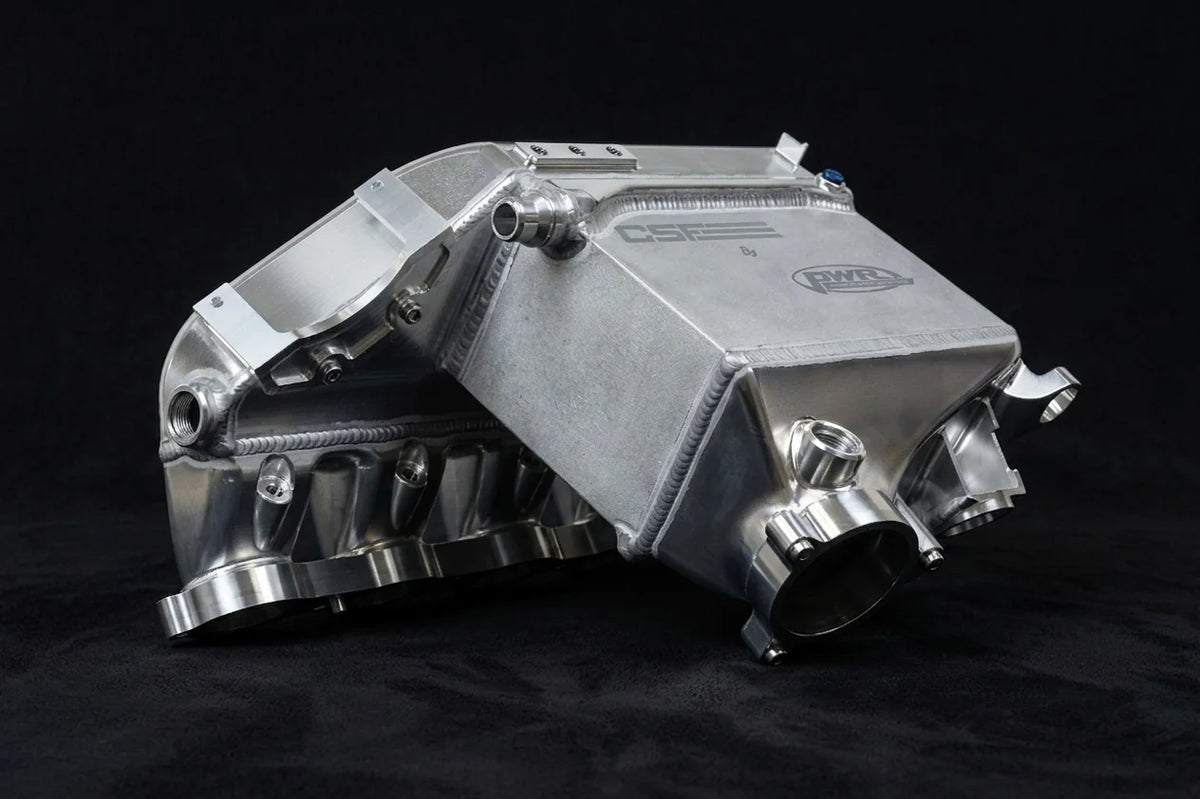

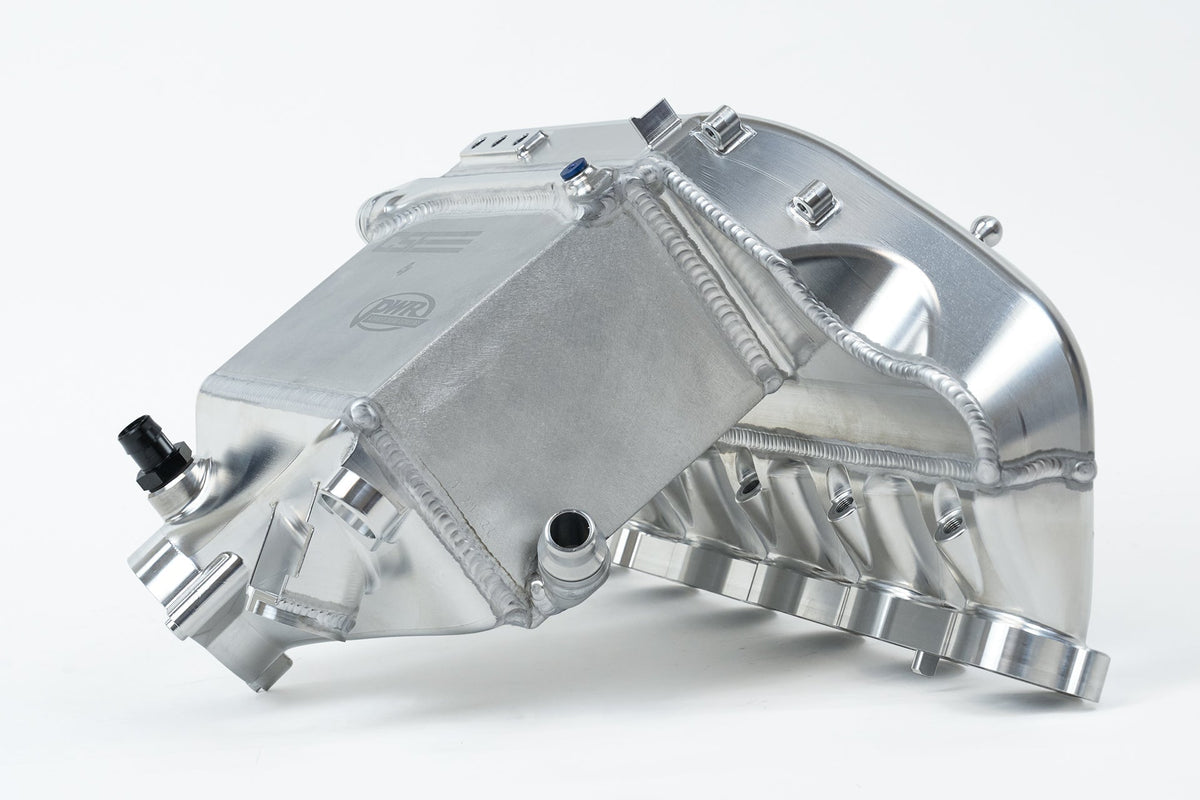

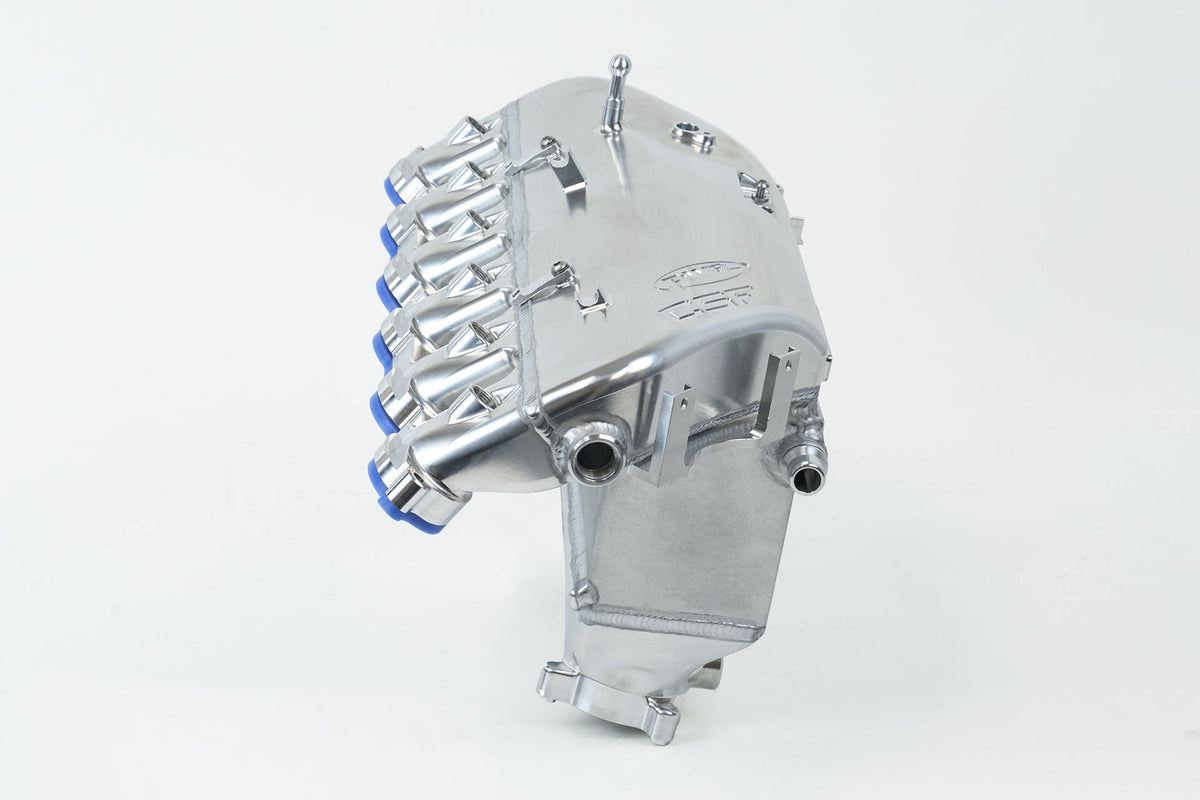

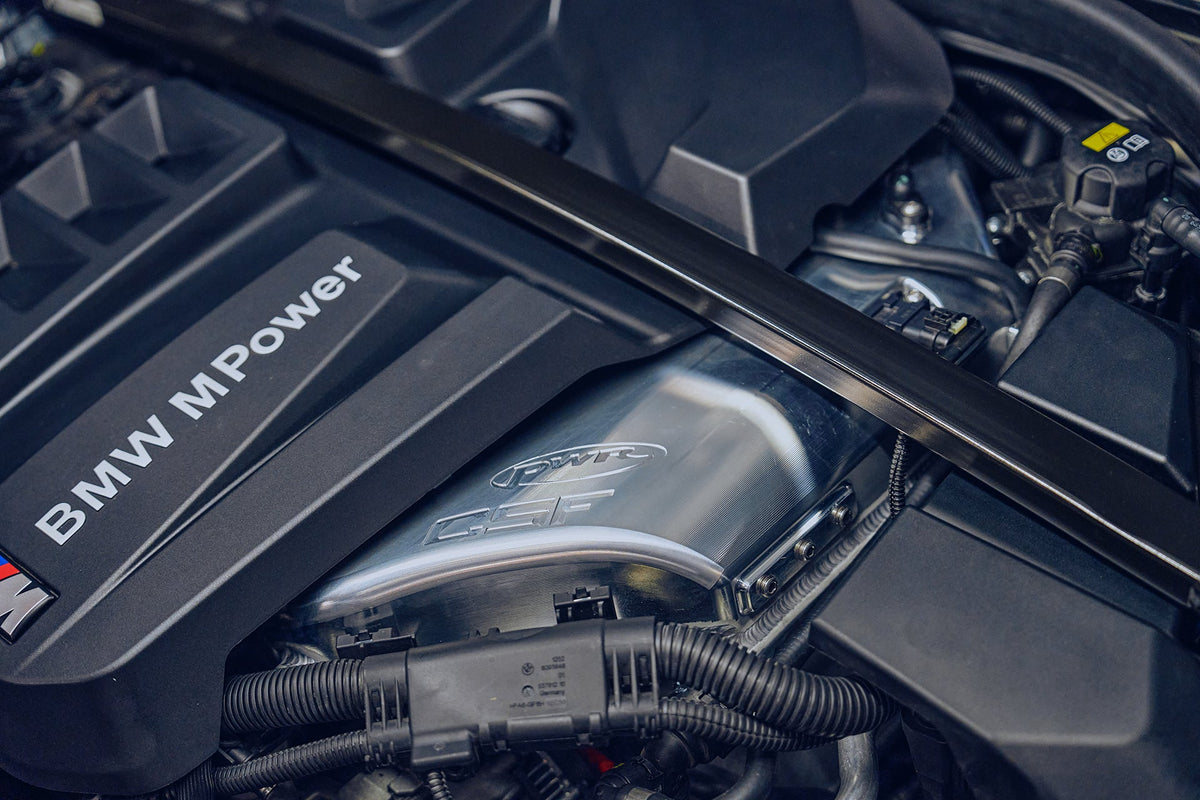

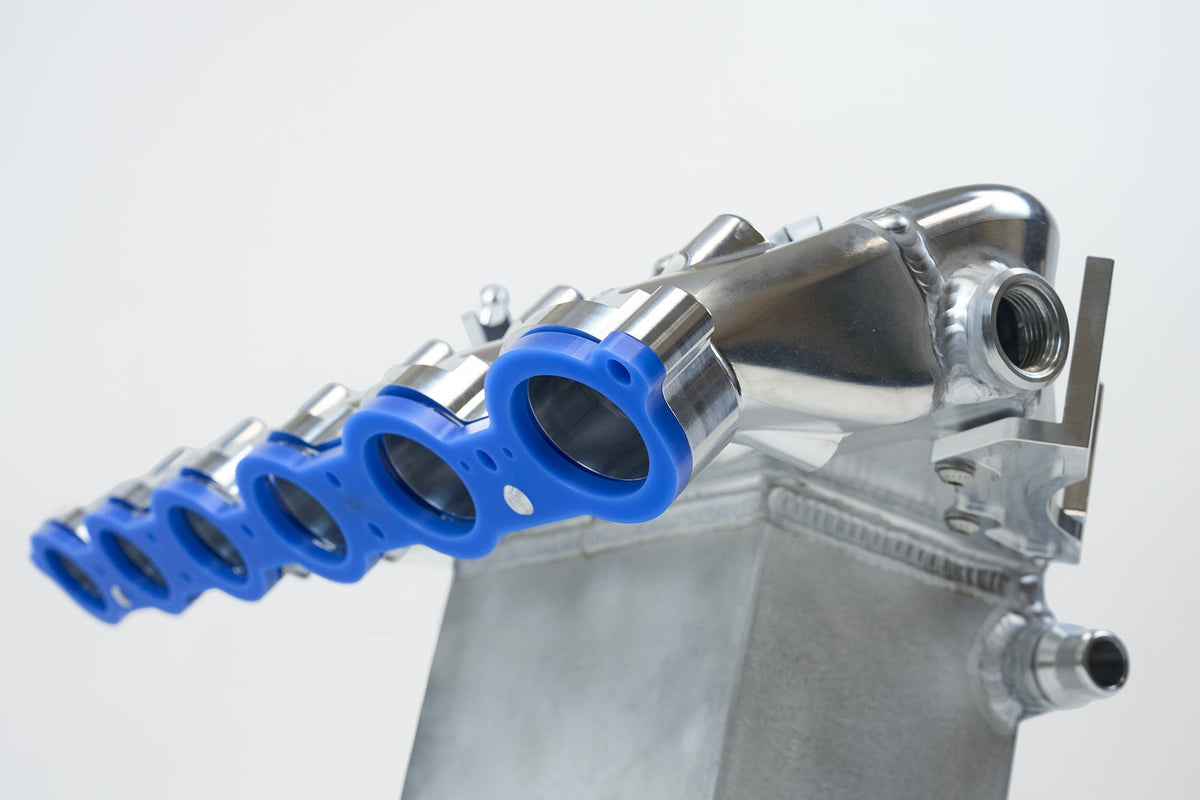

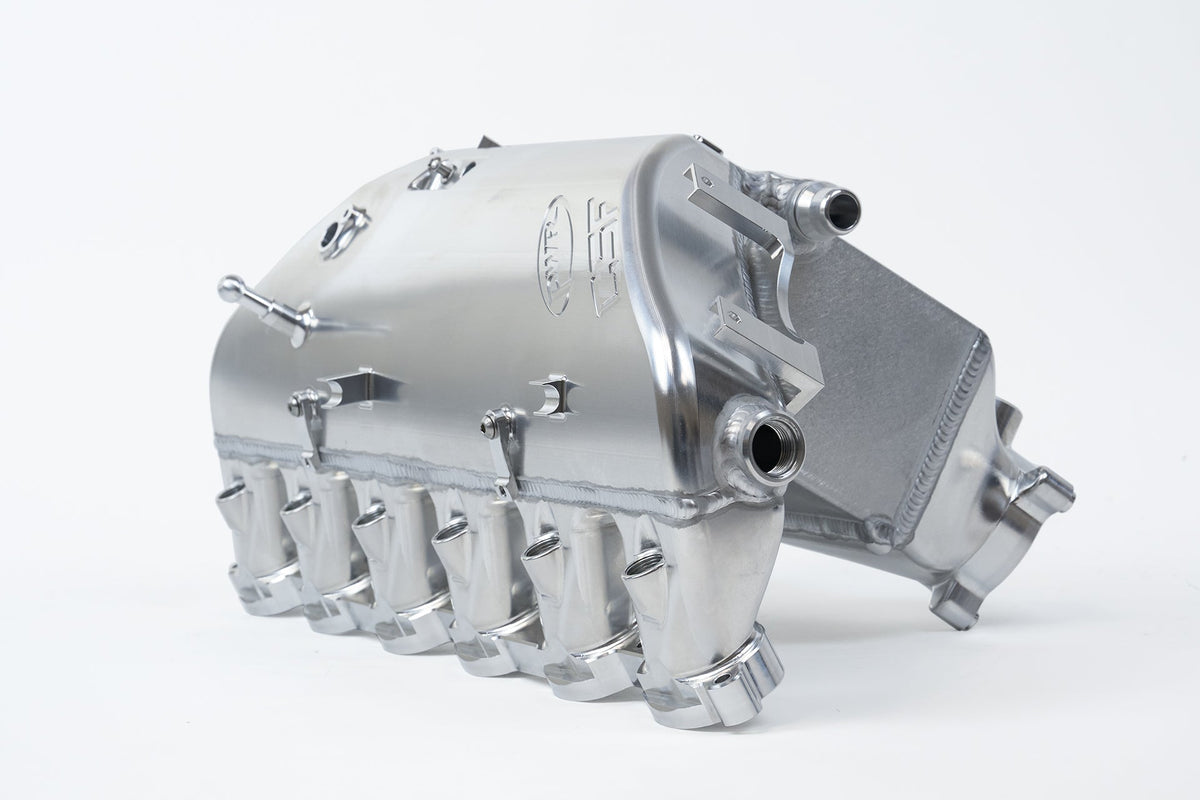

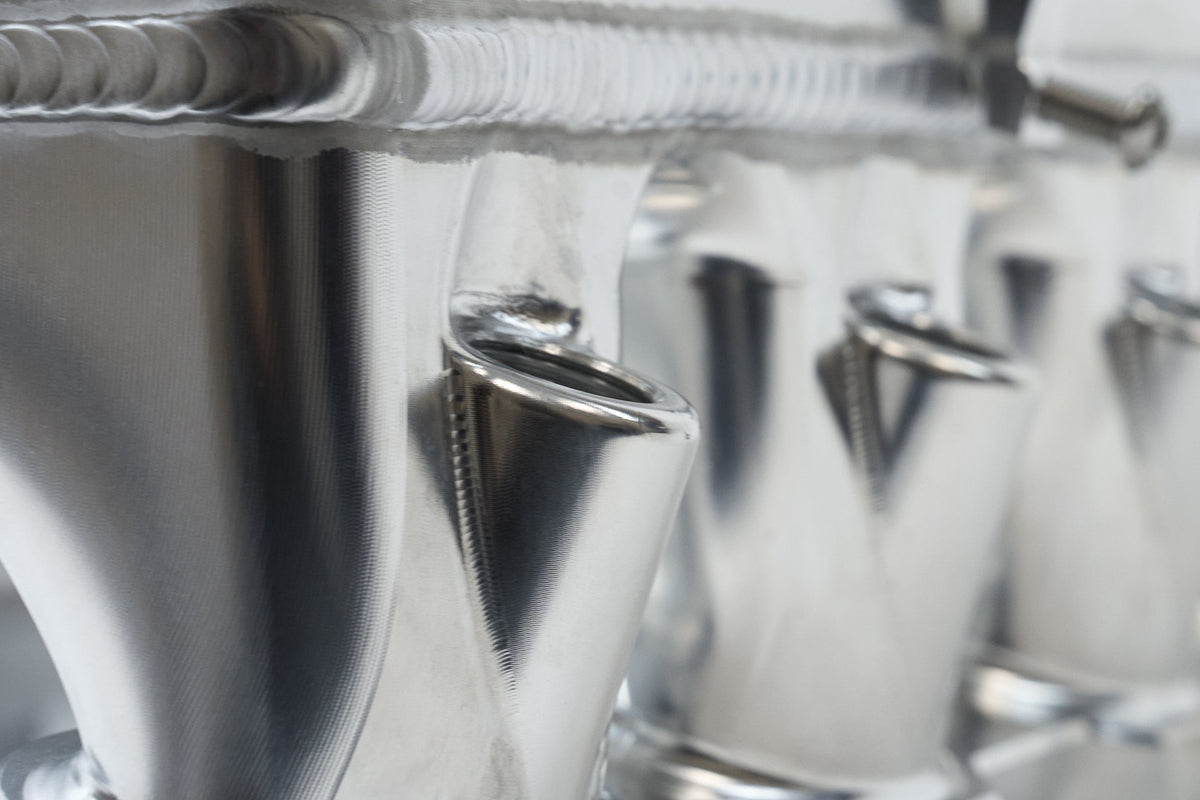

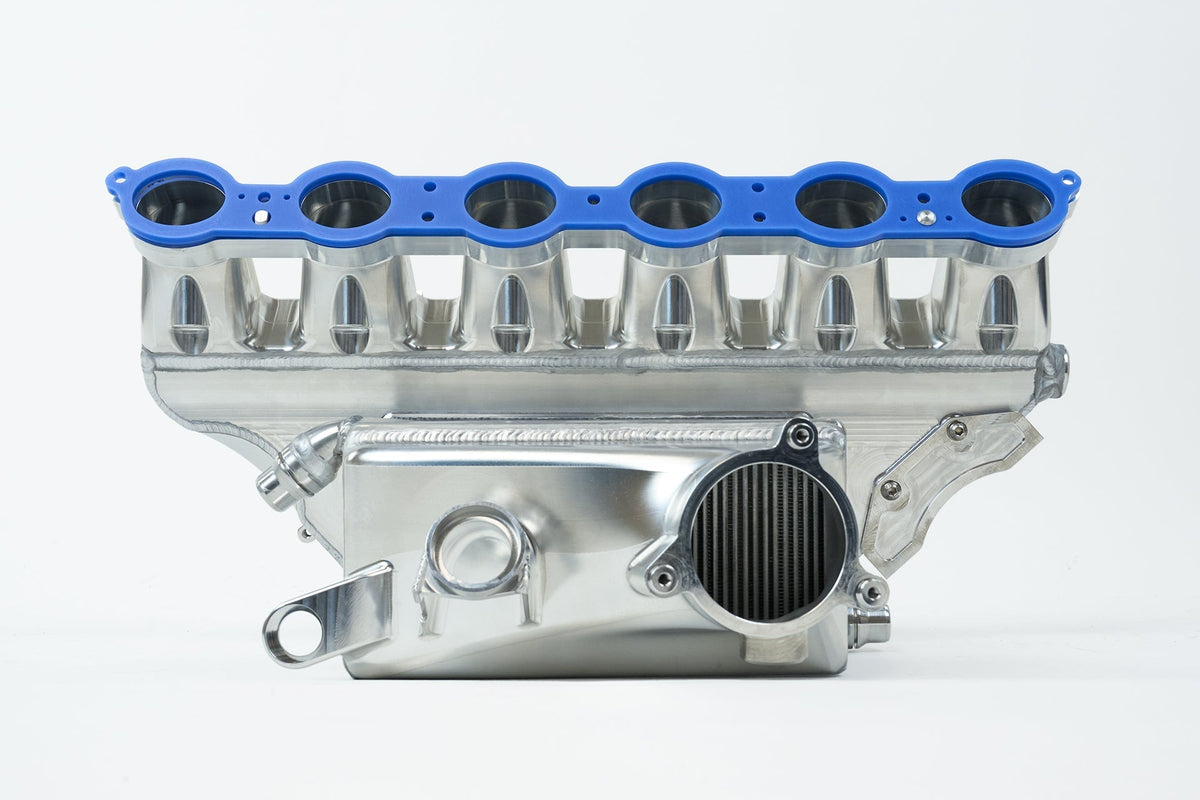

CSF "Level-Up" charge-air-cooler manifold for the S58 — G80 M3, G82 M4, G87 M2, and F97 X3 M / F98 X4 M. A billet intake manifold (CSF by PWR) with an integrated bar-and-plate water-to-air charge cooler that replaces the OEM plastic manifold and its failure-prone tube-and-fin core.

What CSF changes

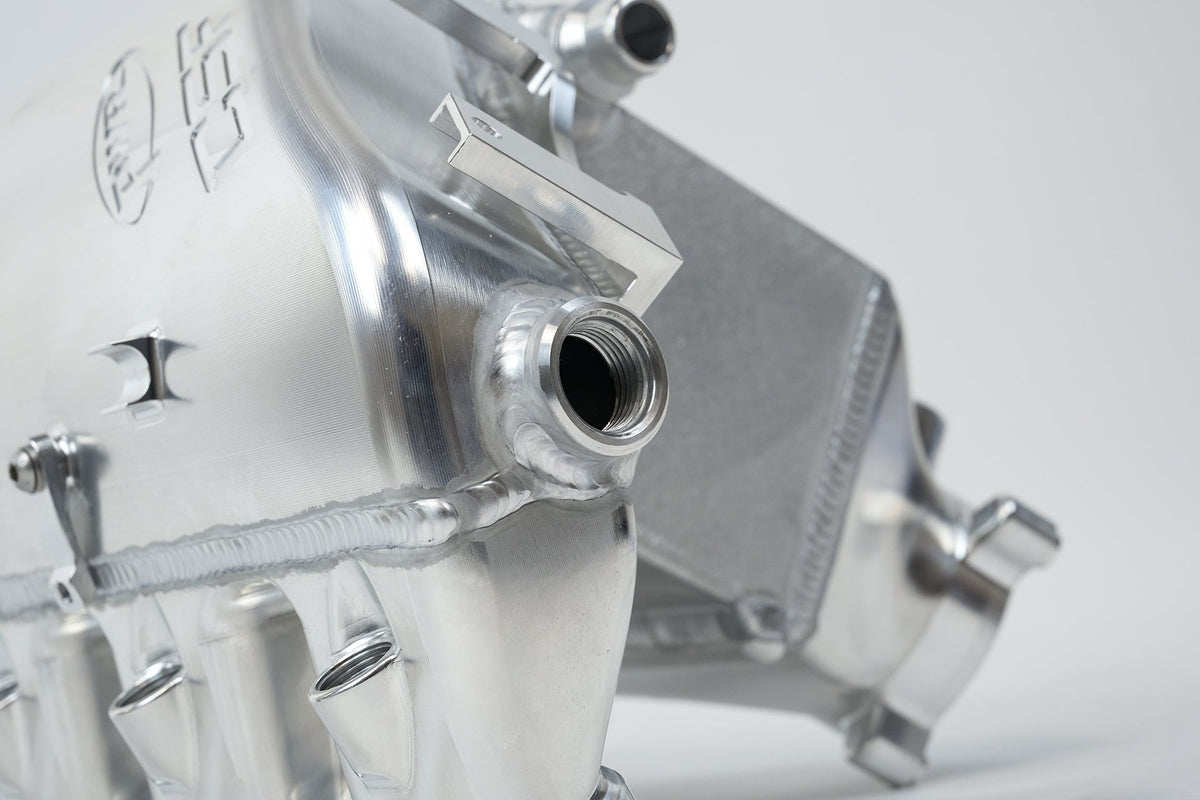

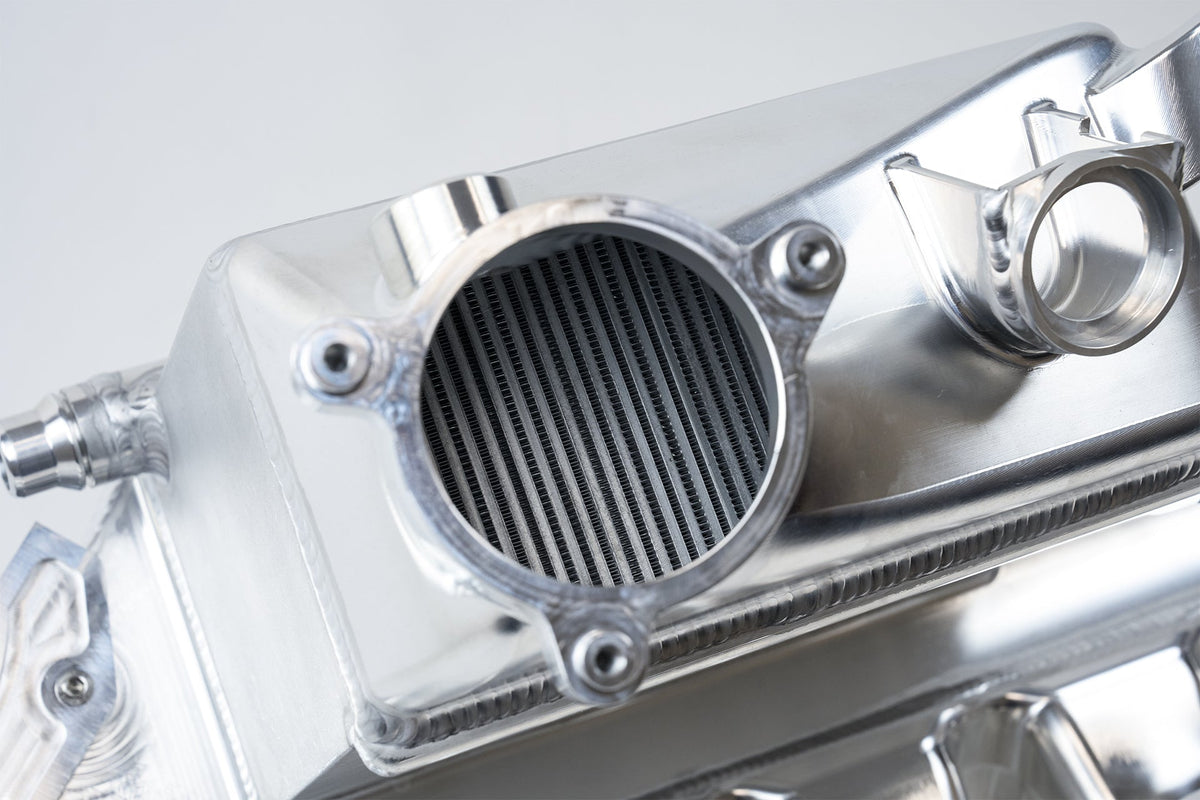

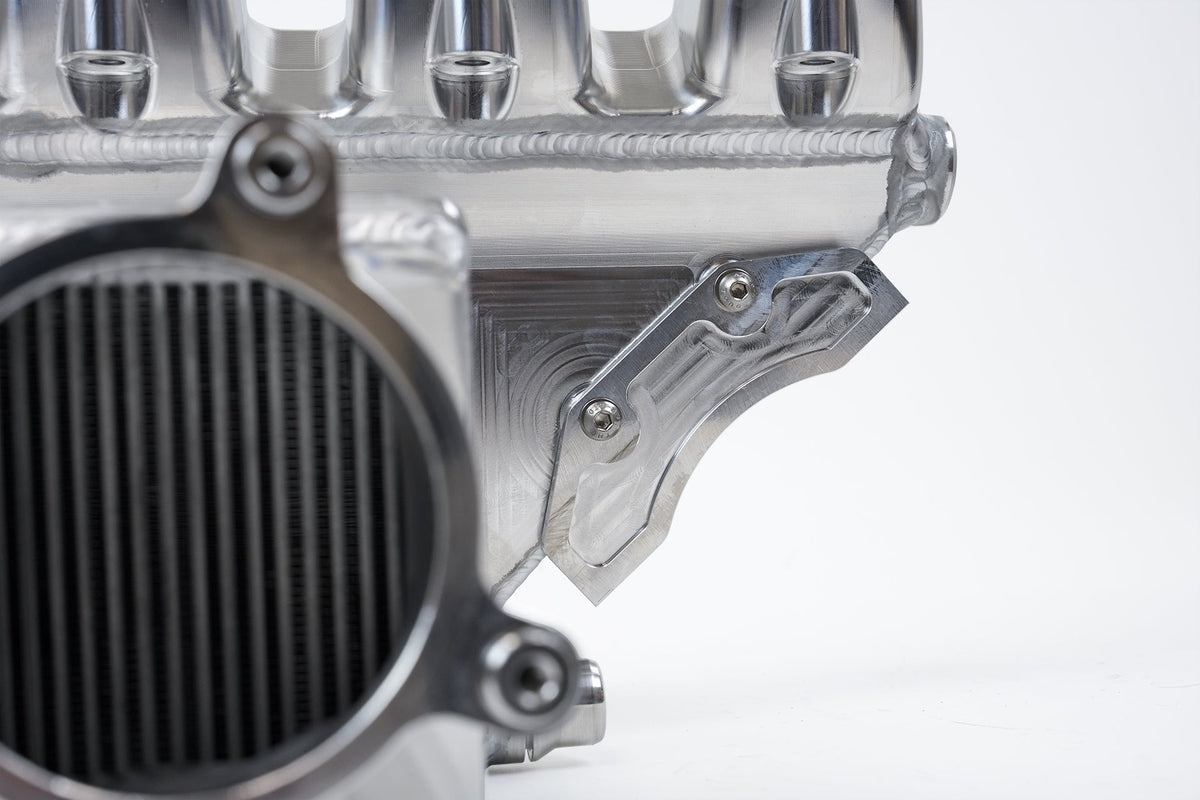

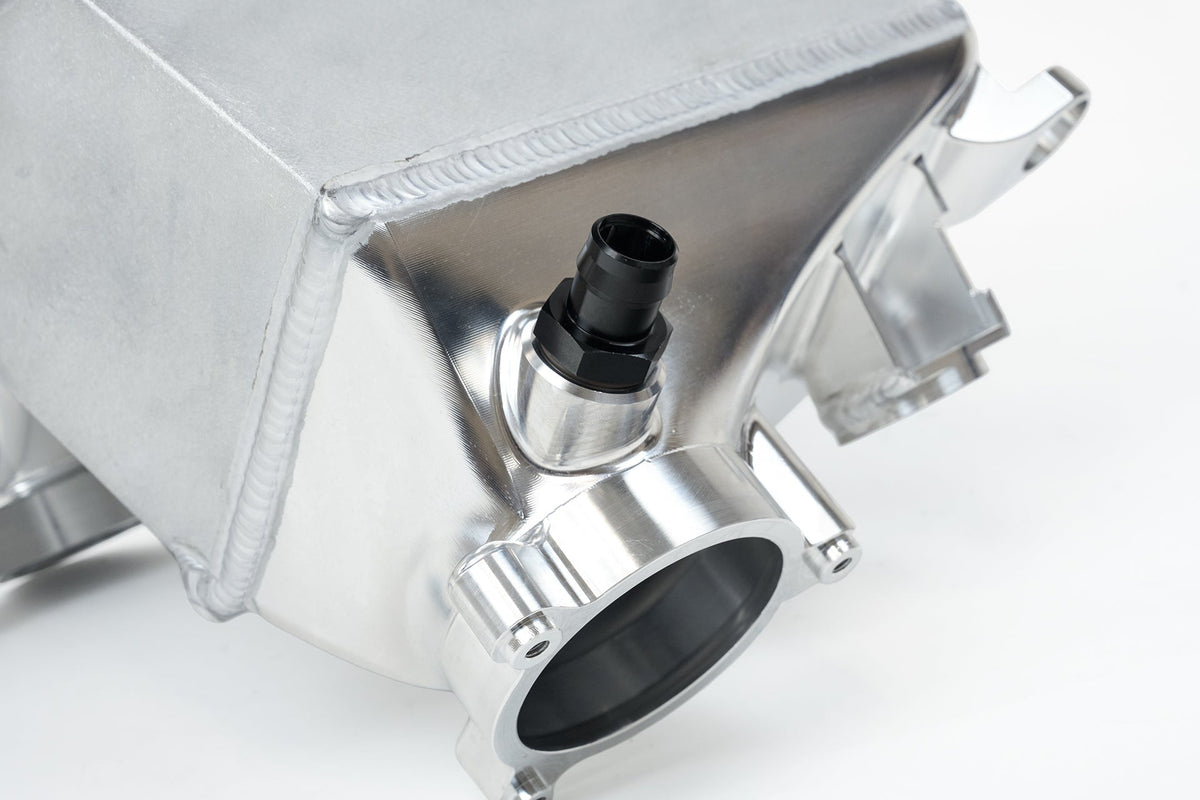

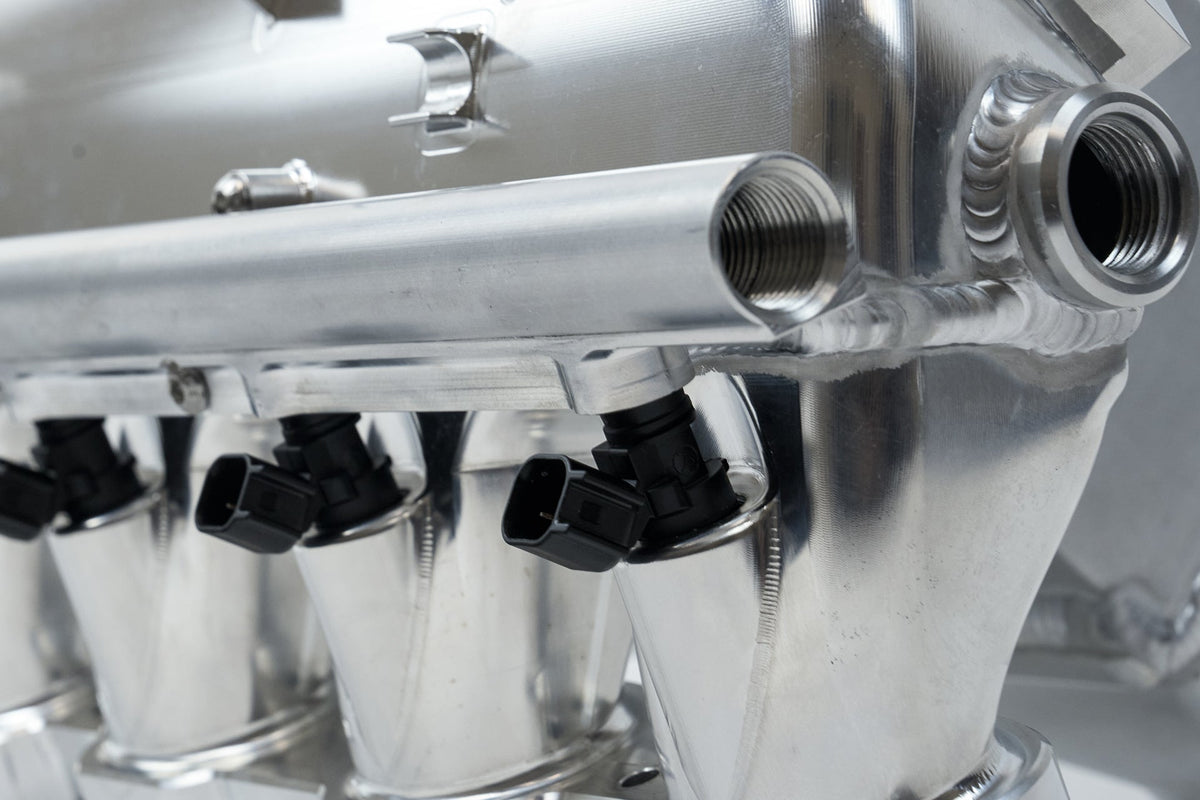

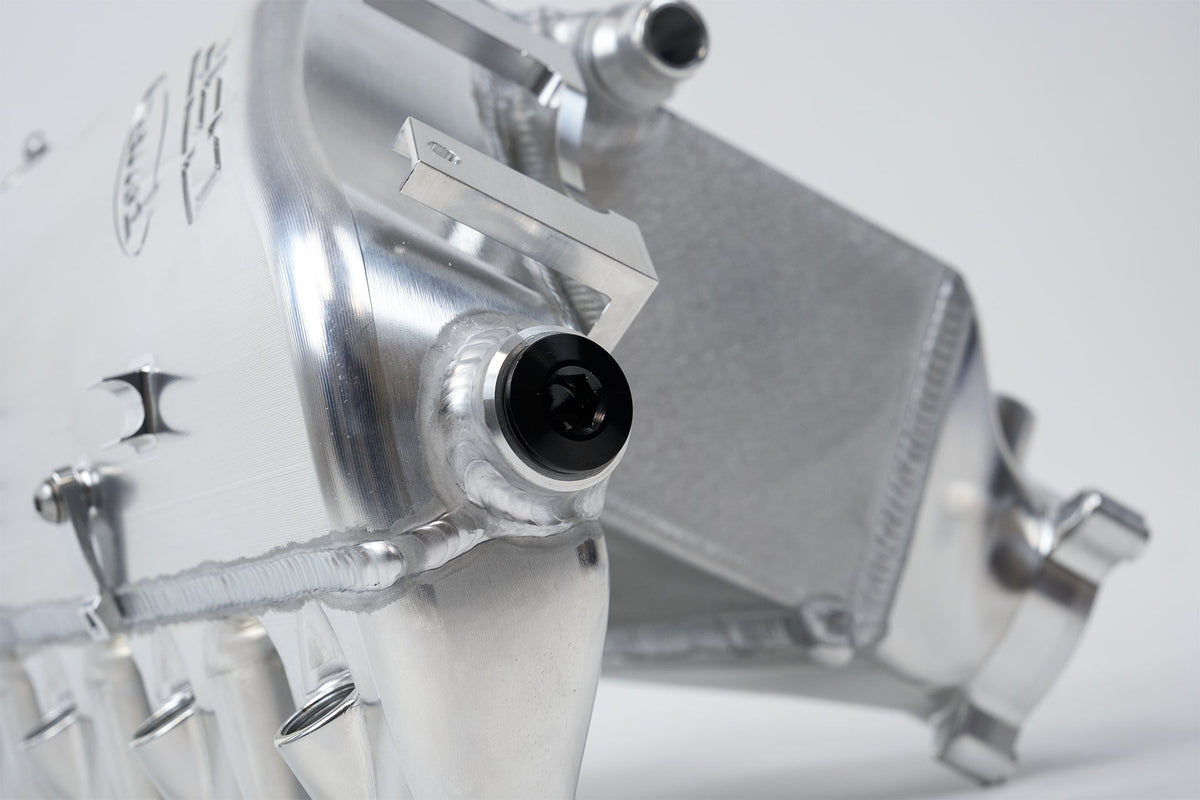

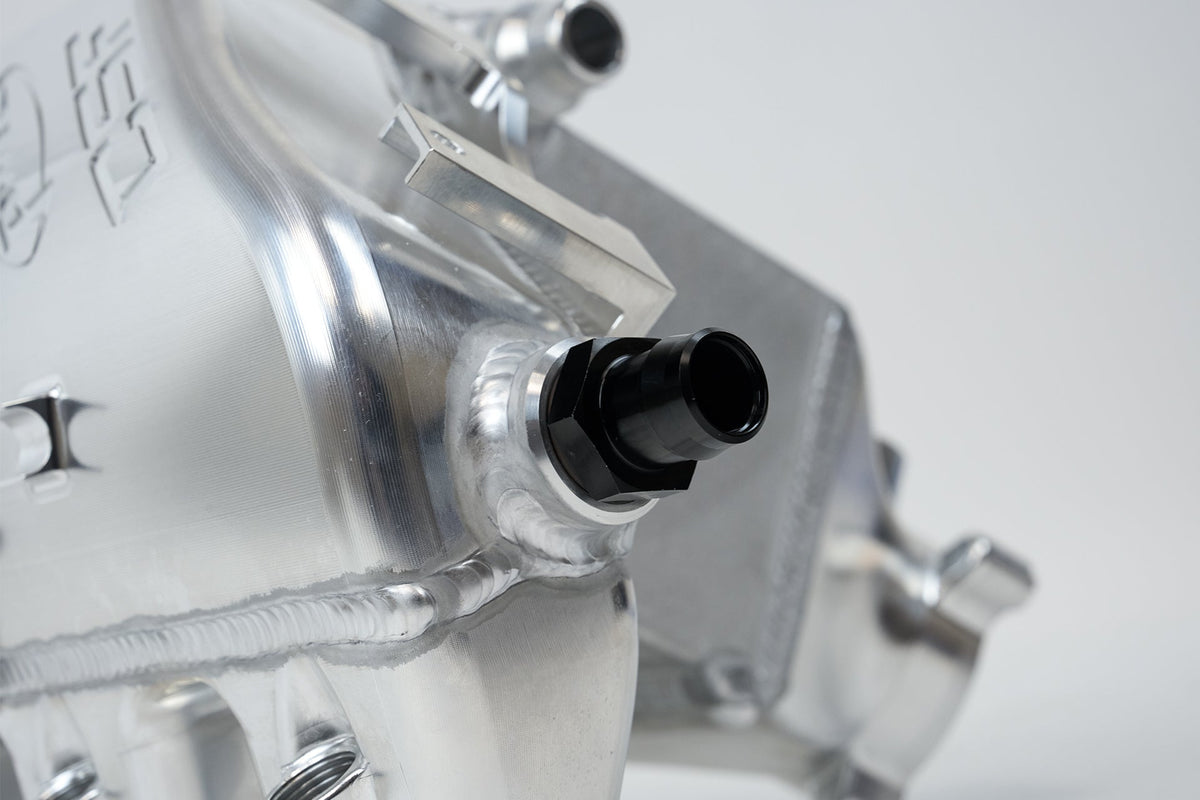

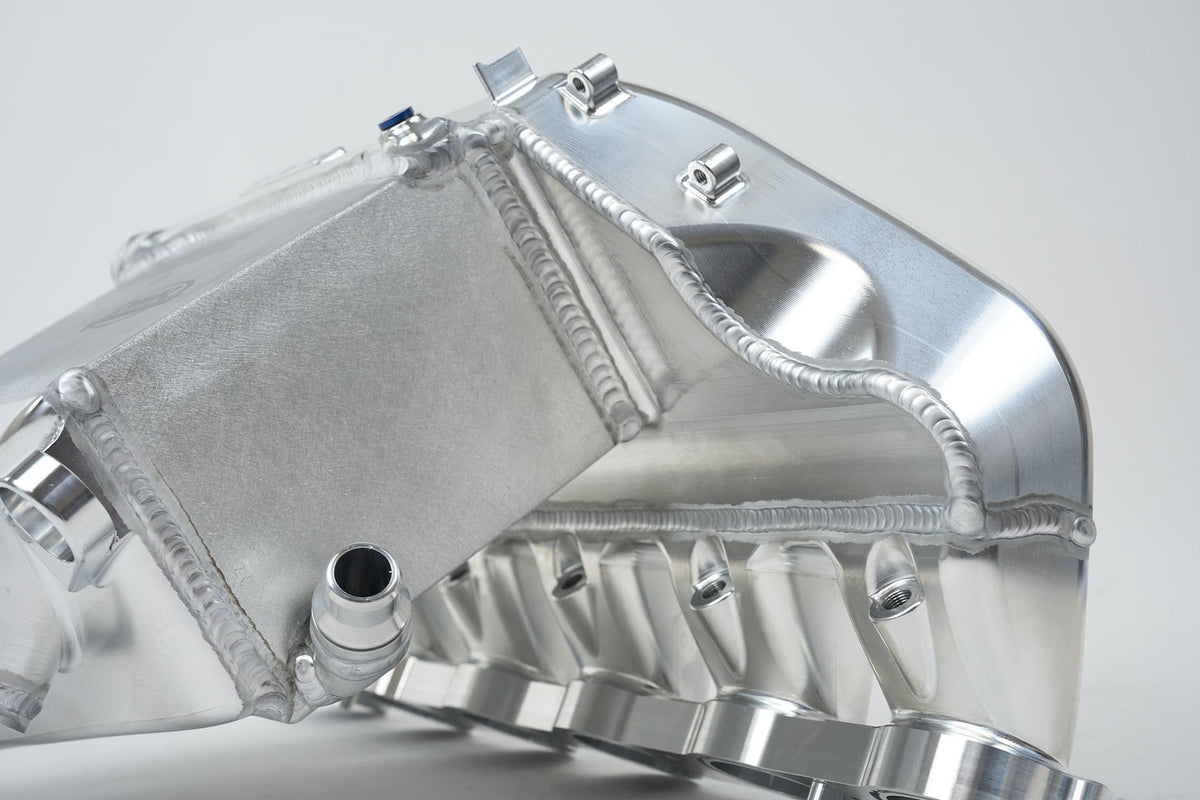

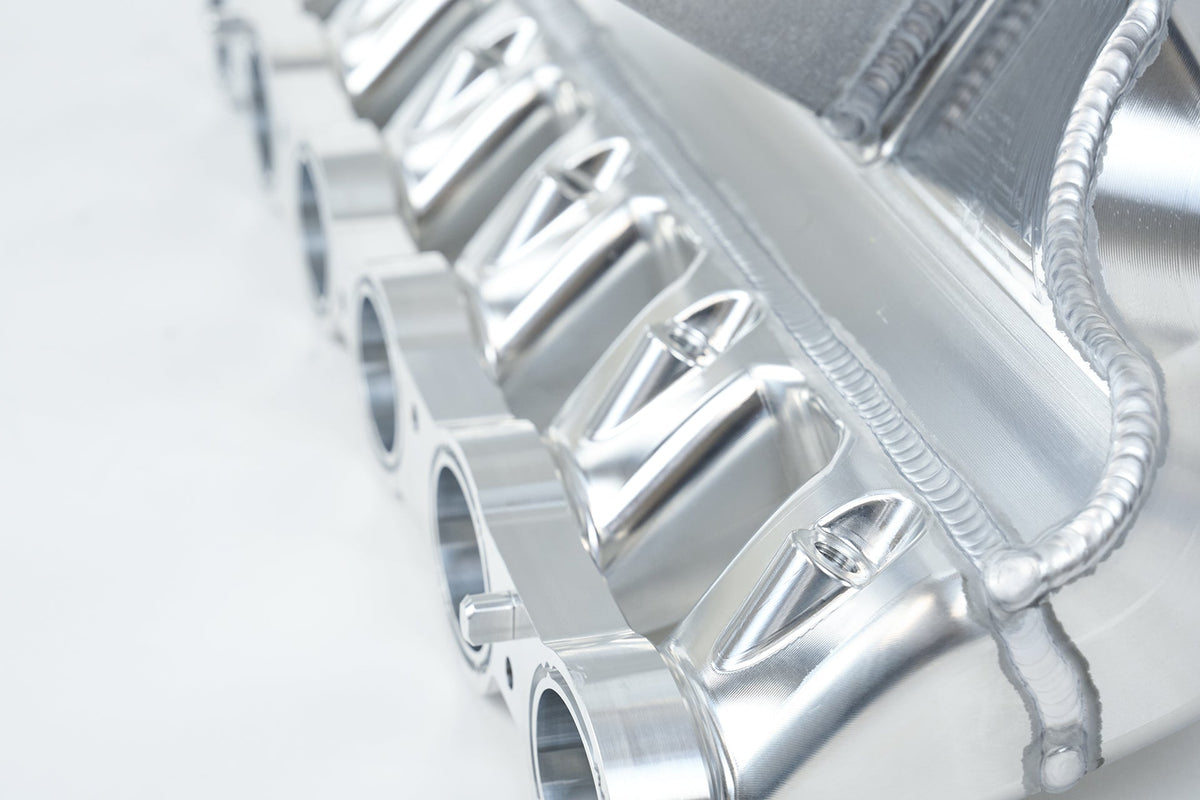

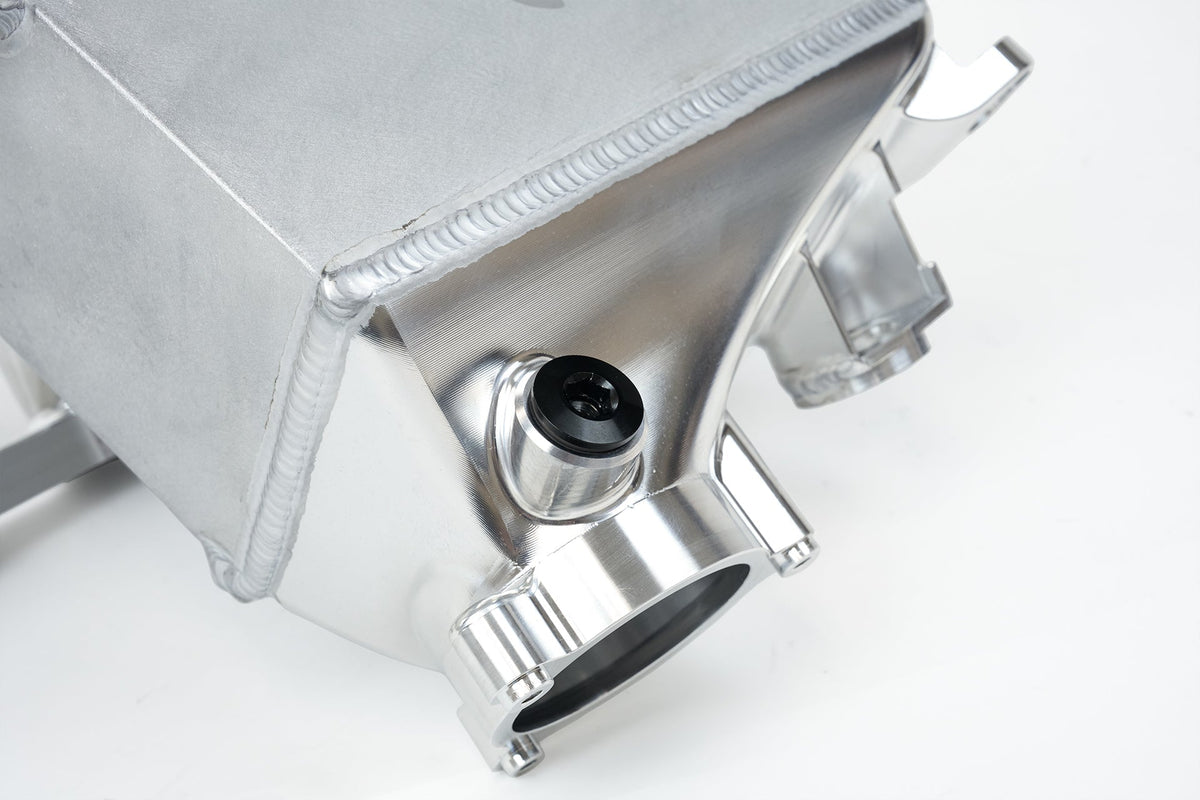

The PWR bar-and-plate core is pressure-tested to 120 psi (the OEM core is prone to failing past ~27 psi), and CSF measures about a 30°F drop in intake temps versus stock. CNC-billet tanks, a top-feed port-injection fuel rail (block-off caps included), per-runner nitrous/methanol ports, and an included KIYLEX thermal-rejection manifold spacer. Made in the USA.

Finishes

Default is the Thermal Heat Dispersion coating — an emissivity coating that helps the part shed heat. Also available Raw, or in Esse Werks colors — Black, White, or Orange. Choose above.

Fitment

S58 — G80 M3, G82 M4, G83 M4 (incl. Competition / xDrive), G87 M2, and F97 X3 M / F98 X4 M. Confirm your chassis in the selector.

This is the charge-cooler-side core of an S58 Stage 2 build. The Stage 2 Kit — S58 packages the matched parts + calibration for 8% under à la carte.

Fits engine S58
Fits chassis G80 · G81 · G82 · G83 · G87 · F97 · F98
Category Induction
Manufacturer CSF

Ships from Boca Raton, FL.

WHY WE SHIP CSF
CSF builds the radiators, heat exchangers, and charge coolers we use when the factory cooling stack can no longer keep up with the load a tuned car puts on it. The cores are engineered to factory fitment, so the upgrade goes in at the OEM locations without fabrication. On the heat-exchanger-cooled engines, the charge cooler is often the single highest-leverage cooling part, and CSF's units carry the thermal capacity to keep intake temps stable through repeated pulls. We ship CSF where a build needs more cooling than stock without giving up clean, factory-style integration.
