AR02 Forged Wheel — AR Series Monoblock
The AR02 is the AR face to pick if you want the caliper readable from most angles — roughly half the face area is open, and it holds near half from just outside the hub pad all the way to the spoke tips.
Why this face

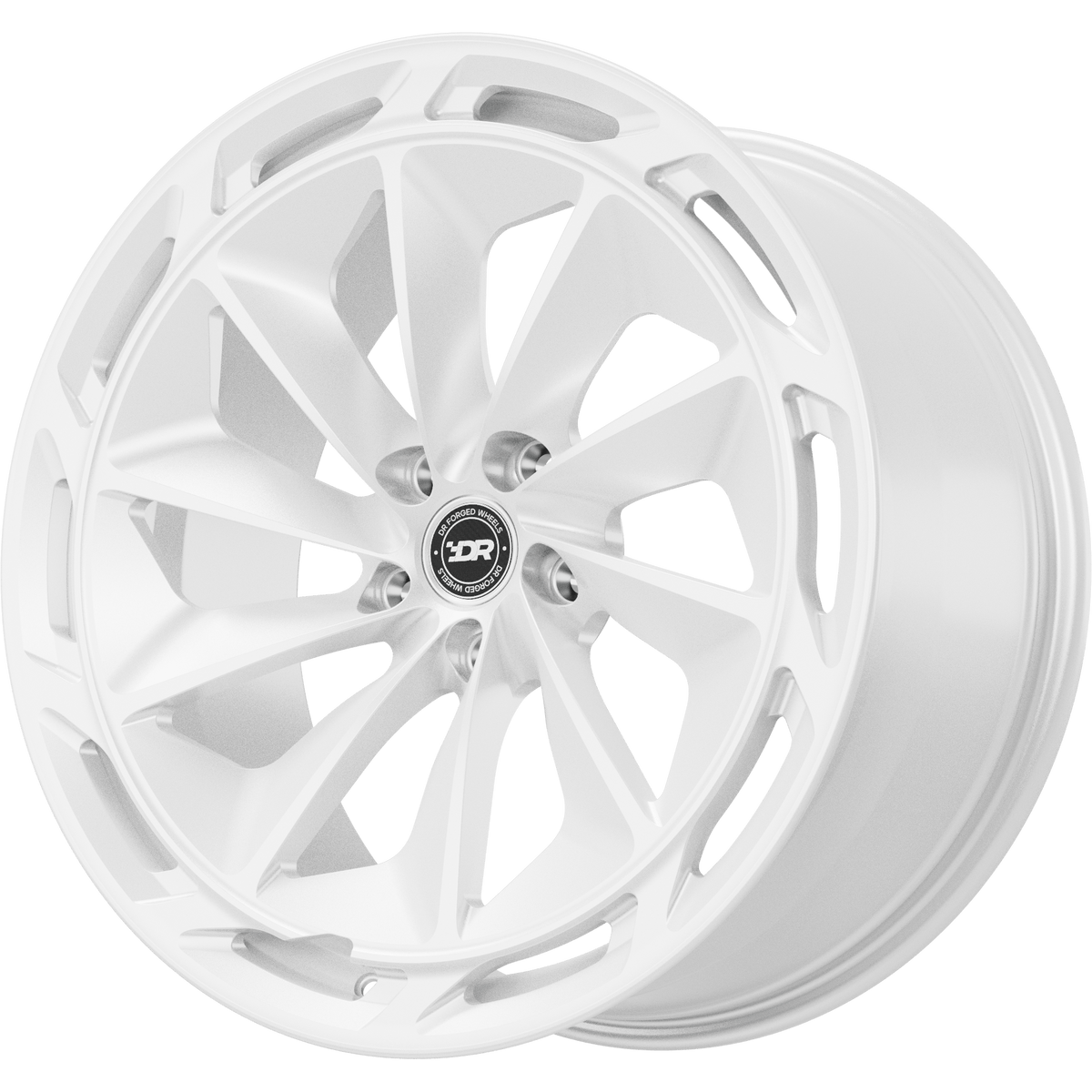

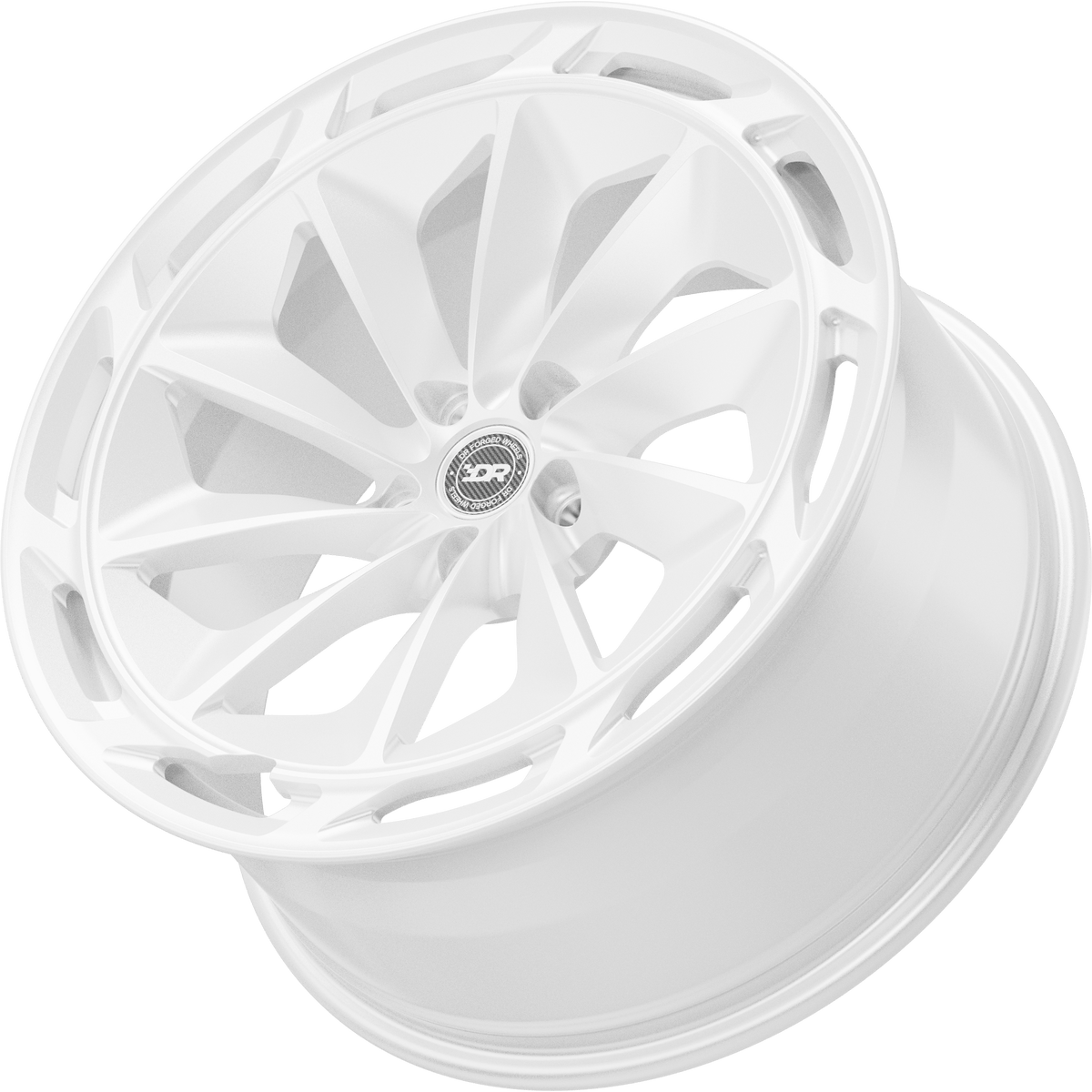

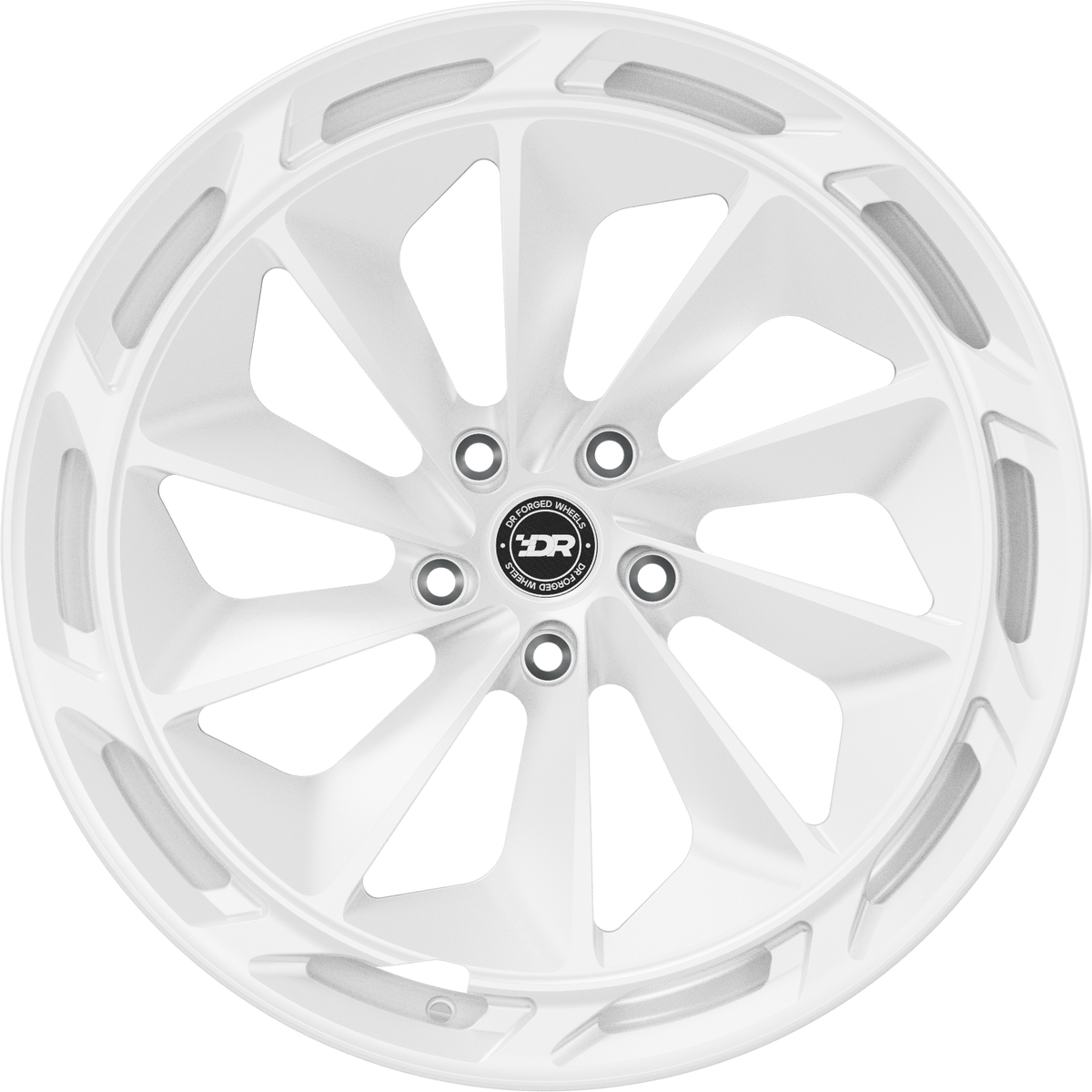

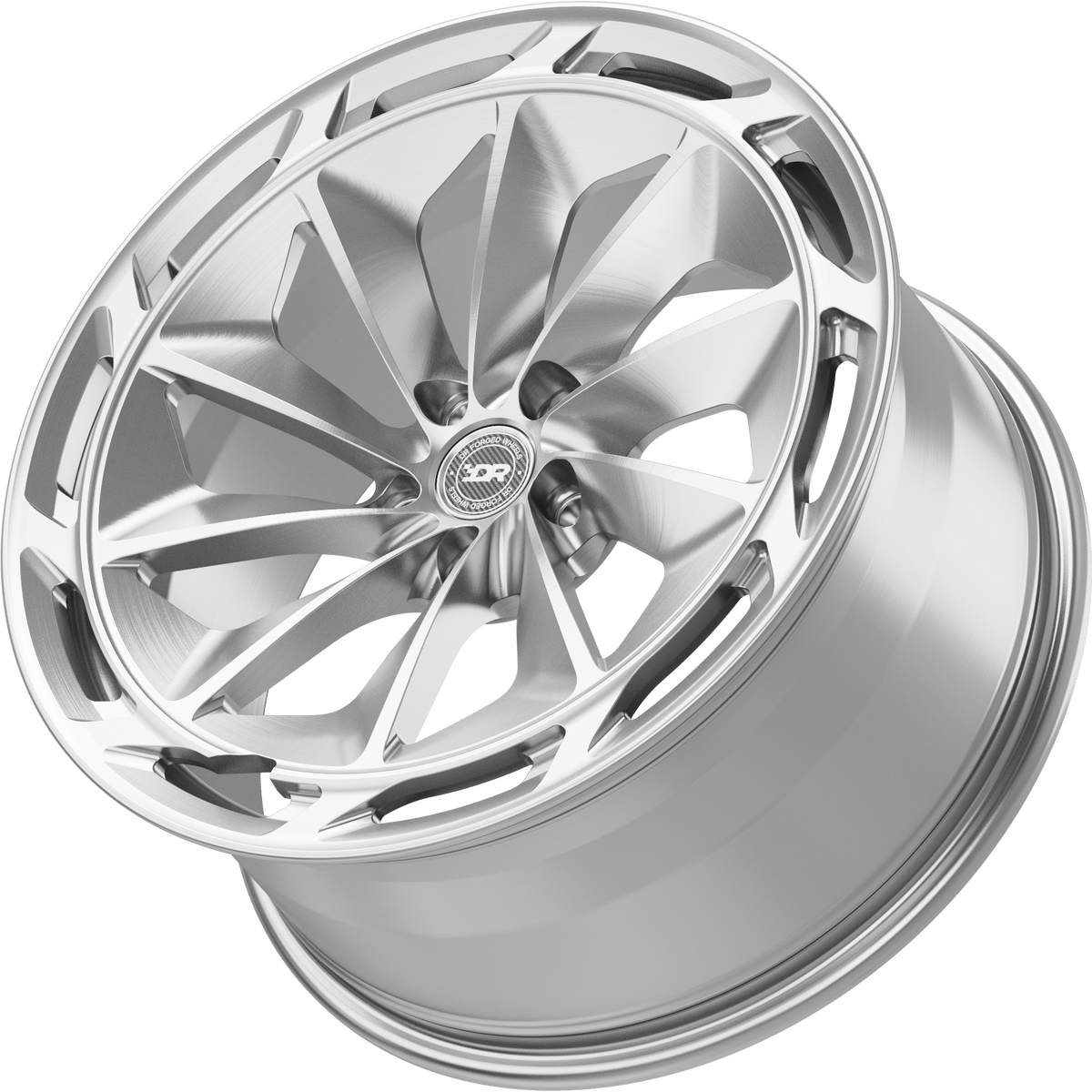

The spoke section is not symmetric. On each of the ten arms the leading edge runs nearly straight out of the hub while the trailing edge curves away behind it, so the arm starts thin and finishes thick where it lands. The windows come out teardrop shaped, tight at the hub end and wide at the outer end. No other wheel in the AR series holds open area that evenly. The flat outer band carries a ring of rounded-rectangular pockets — machined recesses, not holes. Nothing passes through them, so do not spec this expecting them to vent anything.
Will it fit your car
Cut to your car. In plain model terms: the E46 and E9x cars, the F30 and F32 3- and 4-series, the 2015–2020 M3 and M4, the 2019-up 3-series, the 2021-up M3 and M4, the current Z4, F-series MINI and the classic R53 and R56. BMW does not use one bolt pattern across that range — pick your car in the configurator above and the pattern and hub bore set themselves. Front M-Sport calipers clear with no spacer.
Buying it from us
We are an authorized DR Forged dealer and a tuning shop — which is the part that matters on a wheel that gets cut once and cannot be exchanged. Before your order releases to production we validate bolt pattern, offset, width and brake clearance against your specific car. No supporting modifications required. Staggered sets are two line items: set the front, add it, then change width and offset and add the rear. We are in Boca Raton, Florida, and your set ships freight from here.
Spec
- Diameters — 17, 18, 19, 20, 21, 22 in
- Widths by diameter — 17in: 6.5–11 · 18in: 7.5–11 · 19in and 20in: 8–12 · 21in: 8–13 · 22in: 9–12
- Weight — 18–26 lb per wheel by size
- Bolt patterns — 5x120, 5x112, 5x108, 5x110, 5x130 and 4x100, cut to your car
- Brake clearance — M-Sport front calipers, no spacer
- Finishes — 40, gloss or matte, none of them an upcharge
- Lead time — 6 to 8 weeks, every wheel built to order
Frequently asked questions
What bolt pattern does my BMW need?
It depends on the car, and BMW is not consistent about it. E- and F-chassis BMWs run 5x120. G-chassis BMWs run 5x112 — that includes the 2021-up M3 and M4. F-series MINI is 5x112; classic R53 and R56 are 4x100. We confirm it against your car before anything is cut.
How long does an AR02 take to build?
Six to eight weeks. Every DR Forged wheel is machined to your bolt pattern, width and offset — there is no stock to pull from. The clock starts when we lock the spec sheet with you.
Will the AR02 clear my big brake kit?
It clears M-Sport front calipers with no spacer as standard. For an aftermarket big brake kit, send the kit make and model at intake and we check bridge height and spoke clearance before the order releases.
See the full DR Forged range — nine series, four constructions, every wheel cut to one car.
CUSTOM MANUFACTURED Built to your spec. We'll confirm details by phone before production. Lead time 6–8 weeks after confirmation.
SHIPPING Ships freight from Boca Raton, FL — additional fees may apply at checkout.
How this wheel is built.
Every DR Forged wheel is made to order, not pulled from a shelf. The center is 6-axis CNC-machined from a forged 6061-T6 aluminum billet, in a one-piece monoblock or a two-piece modular build depending on the model. We spec each one to clear factory BMW M-Sport brakes, so the fitment is matched to the car rather than left generic.
Width and offset are cut to your spec, with finish and diameter chosen at order. Because these are built to order, plan on a lead time of 6 to 8 weeks rather than next-day stock. Staggered front/rear setups are common — configure the front spec, add to cart, then change width and offset and add the rear.
Choose a finish
i
[TODO — describe character]
Black Diamond
i
[TODO — describe character]

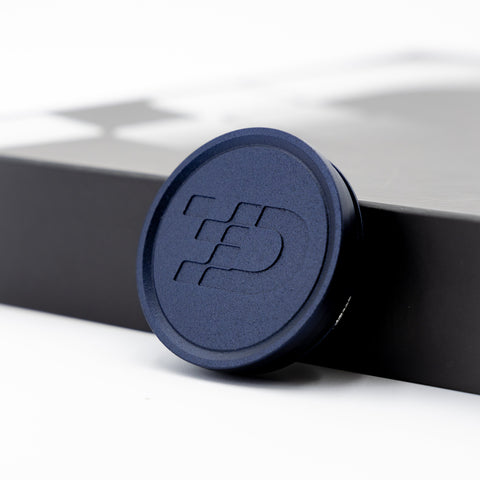

Dye Blue Cast
i
[TODO — describe character]

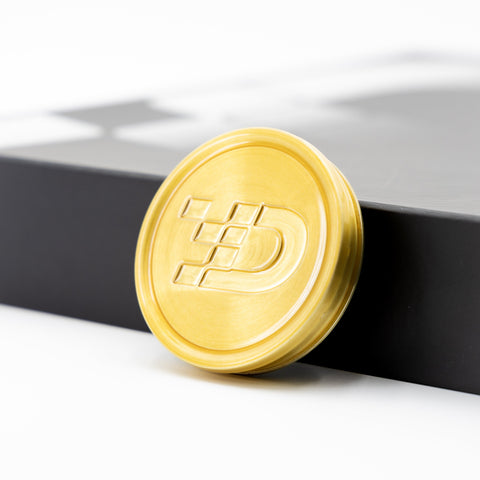

Gloss Anodized Brass
i
[TODO — describe character]

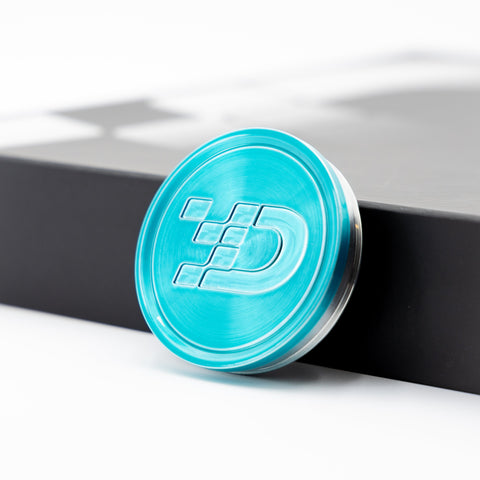

Gloss Aqua Clear
i
[TODO — describe character]

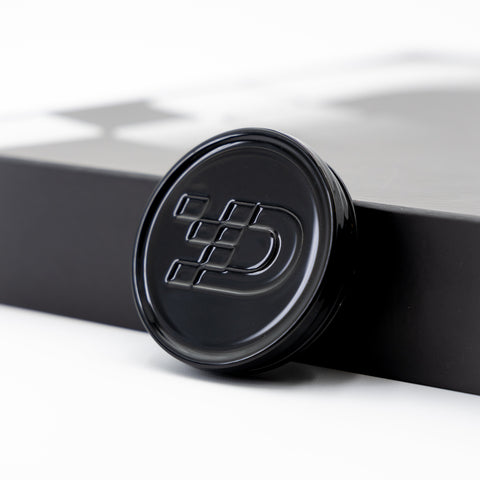

Gloss Black
i
[TODO — describe character]

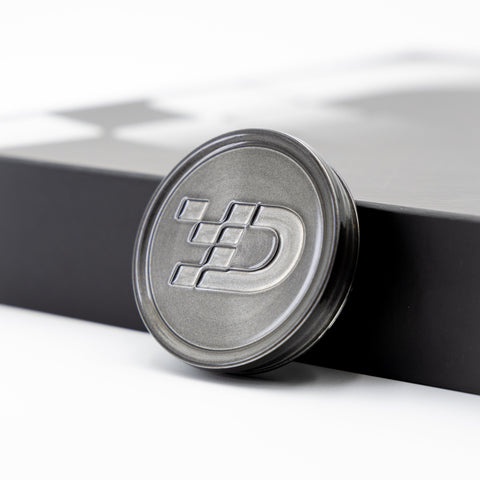

Gloss Black Chrome
i
[TODO — describe character]

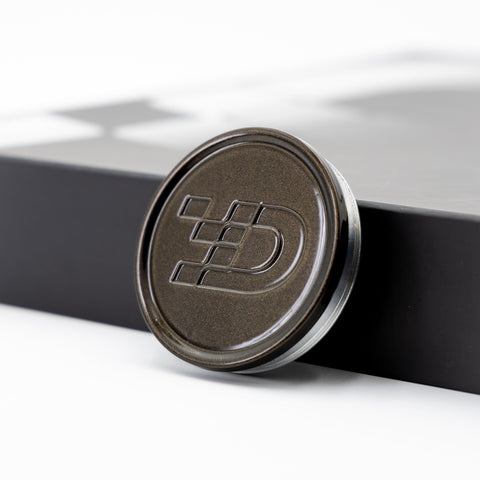

Gloss Bronze Chrome
i
[TODO — describe character]

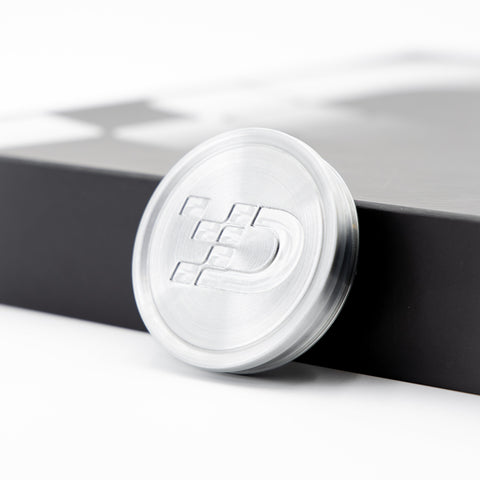

Gloss Clear
i
[TODO — describe character]

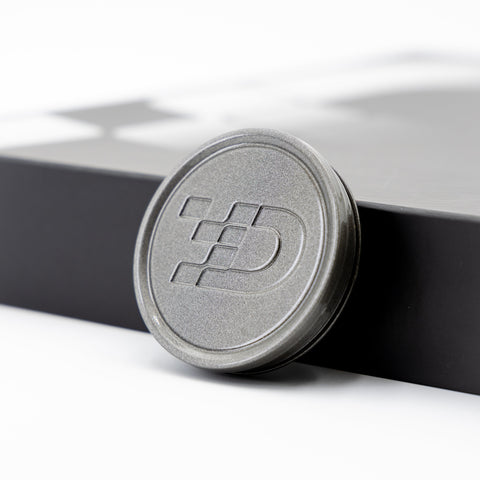

Gloss Desmo
i
[TODO — describe character]

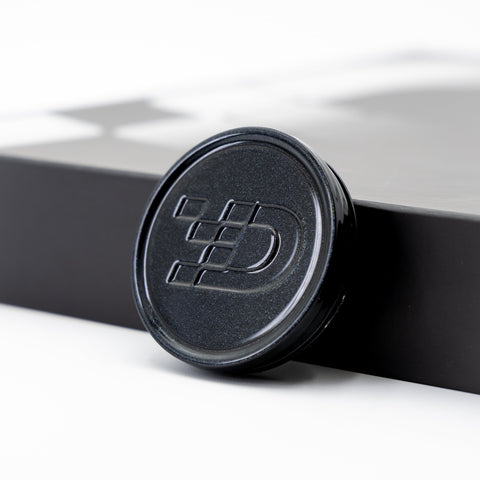

Gloss Lazer Crystal
i
[TODO — describe character]

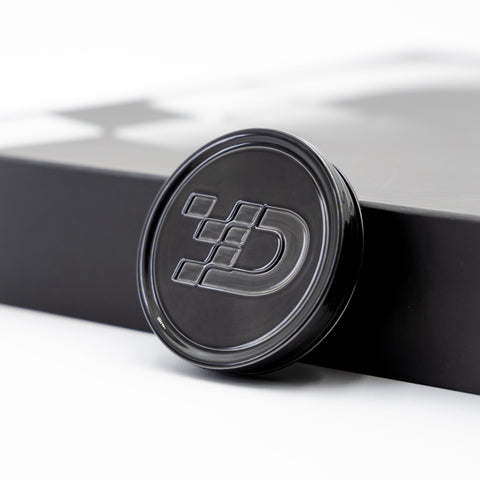

Gloss Liquid Smoke
i
[TODO — describe character]

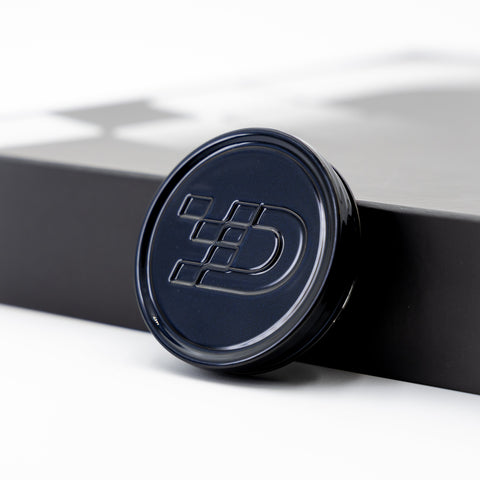

Gloss Misty Blue
i
[TODO — describe character]

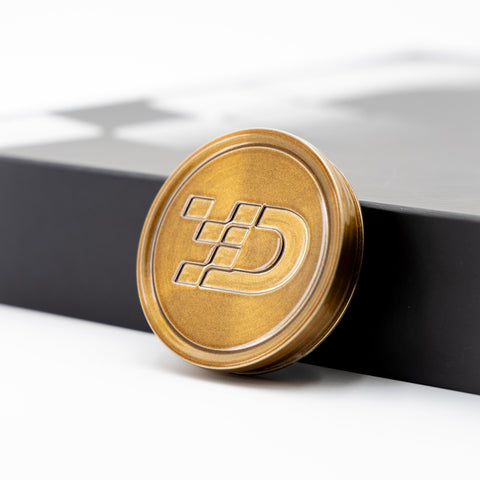

Gloss Monaco Copper
i
[TODO — describe character]
Gloss Pastel Copper
i
[TODO — describe character]
Gloss Slate Grey
i
[TODO — describe character]

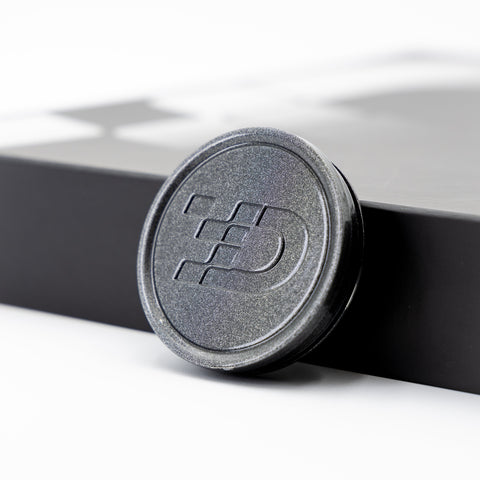

Gloss Stealth Charcoal
i
[TODO — describe character]
Gloss Tinted Clear
i
[TODO — describe character]

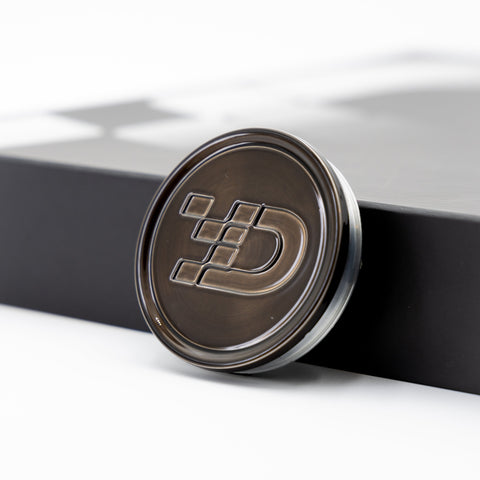

Gloss Transparent Brown
i
[TODO — describe character]

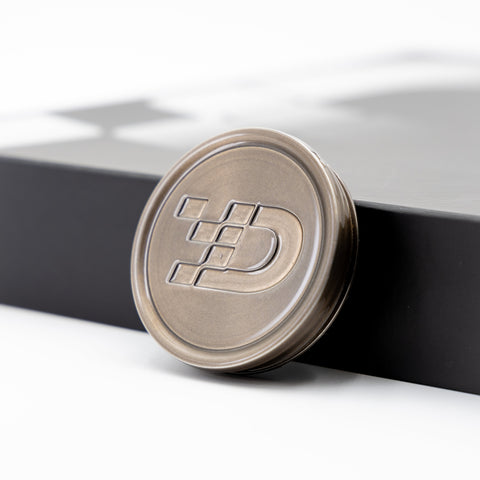

Gloss Transparent Charcoal
i
[TODO — describe character]
Gloss Transparent Gold
i
[TODO — describe character]

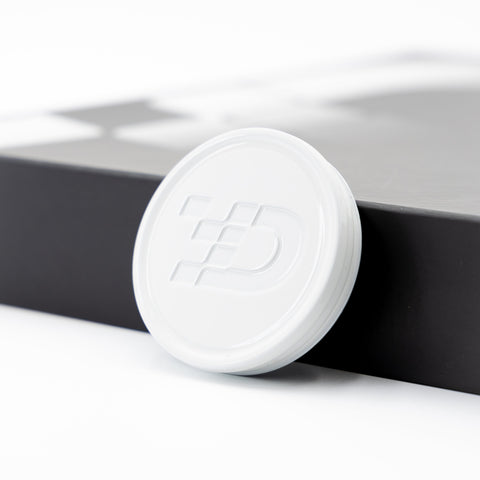

Gloss White
i
[TODO — describe character]

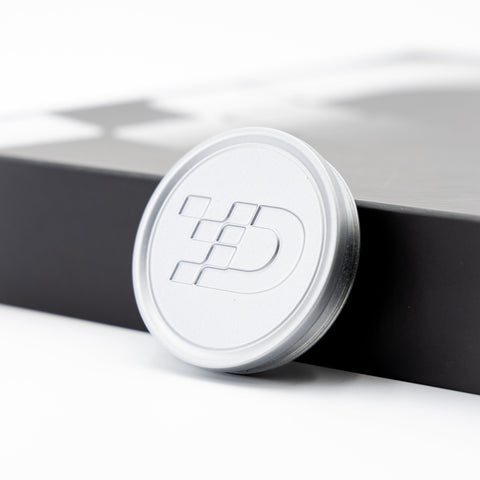

Gloss White Silver
i
[TODO — describe character]
Matte Anodized Brass
i
[TODO — describe character]
Matte Black
i
[TODO — describe character]
Matte Black Chrome
i
[TODO — describe character]

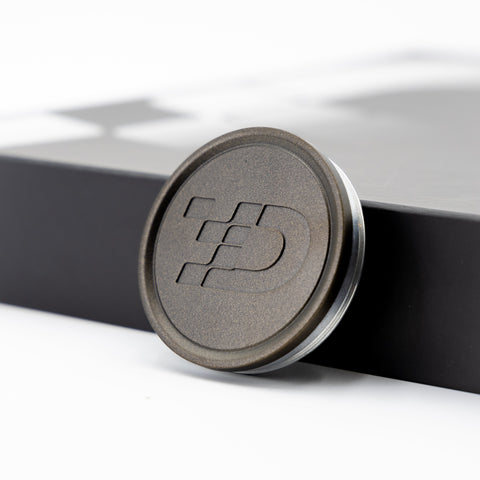

Matte Bronze
i
[TODO — describe character]

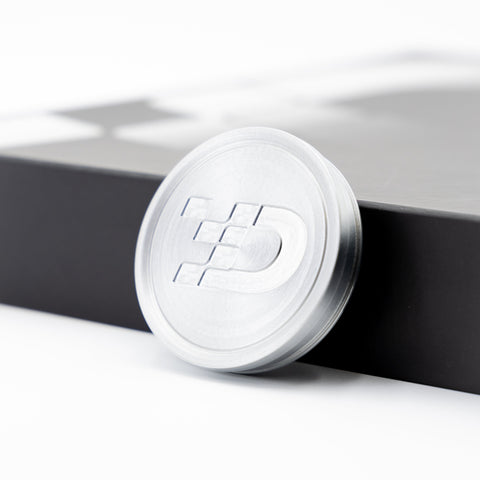

Matte Clear
i
[TODO — describe character]

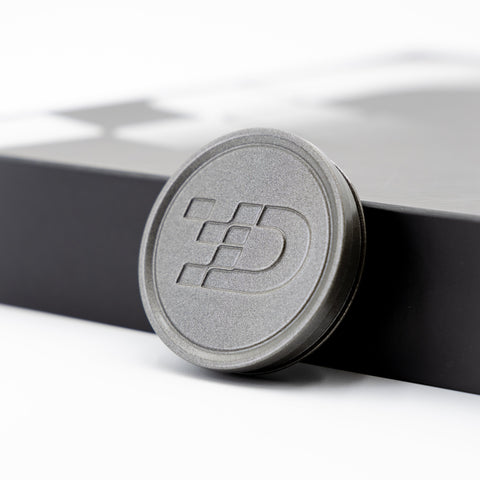

Matte Desmo
i
[TODO — describe character]

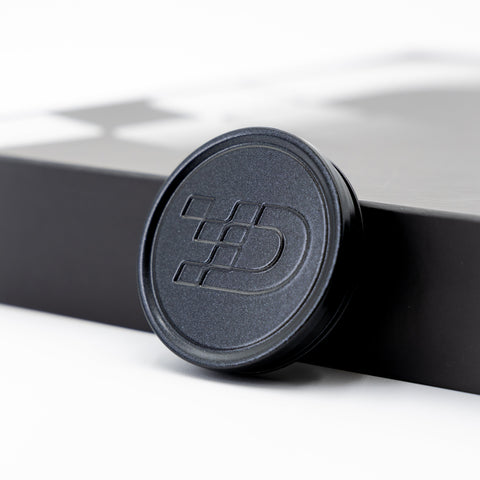

Matte Lazer Crystal
i
[TODO — describe character]

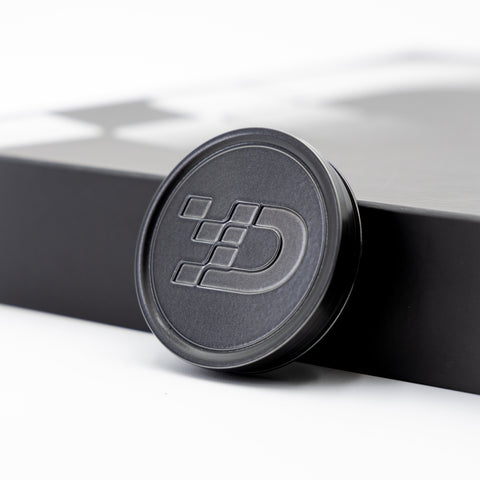

Matte Liquid Smoke
i
[TODO — describe character]
Matte Misty Blue
i
[TODO — describe character]

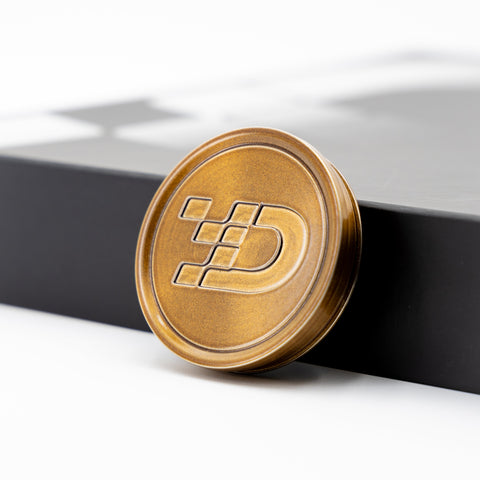

Matte Monaco Copper
i
[TODO — describe character]
Matte Pastel Copper
i
[TODO — describe character]

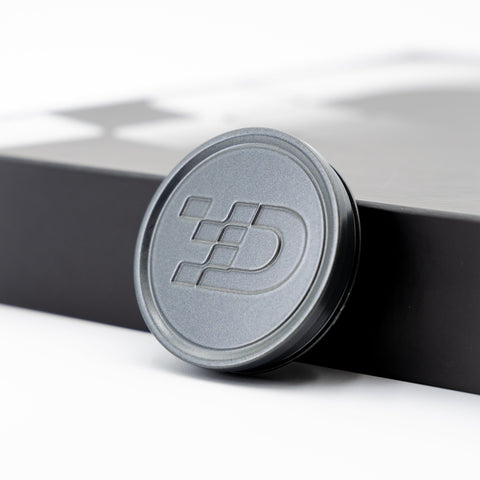

Matte Slate Grey
i
[TODO — describe character]
Matte Stealth Charcoal
i
[TODO — describe character]
Matte Tinted Clear
i
[TODO — describe character]
Matte Transparent Charcoal
i
[TODO — describe character]

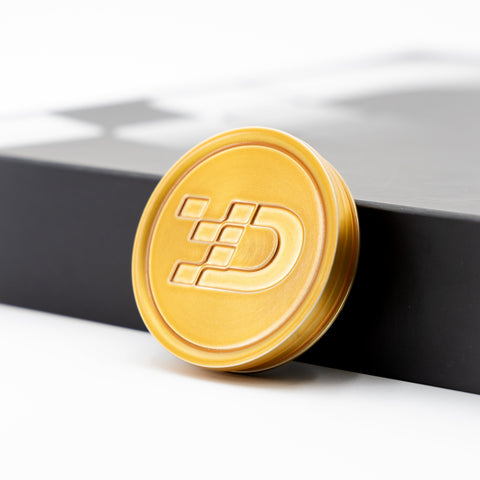

Matte Transparent Gold
i
[TODO — describe character]

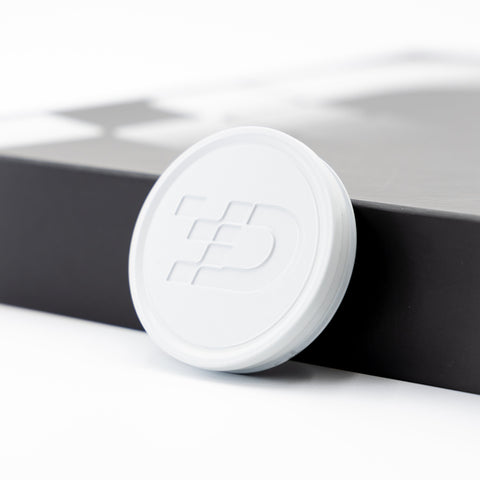

Matte White
i
[TODO — describe character]

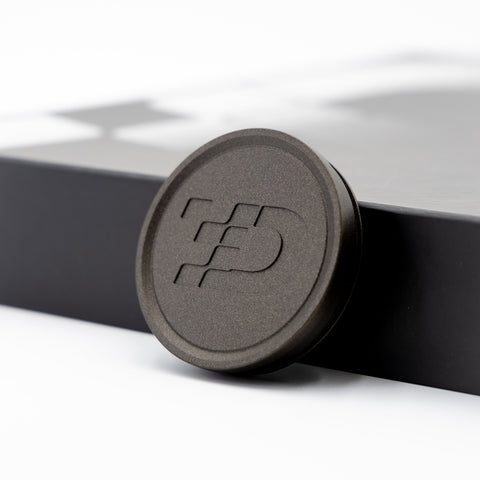

Terra Brown
