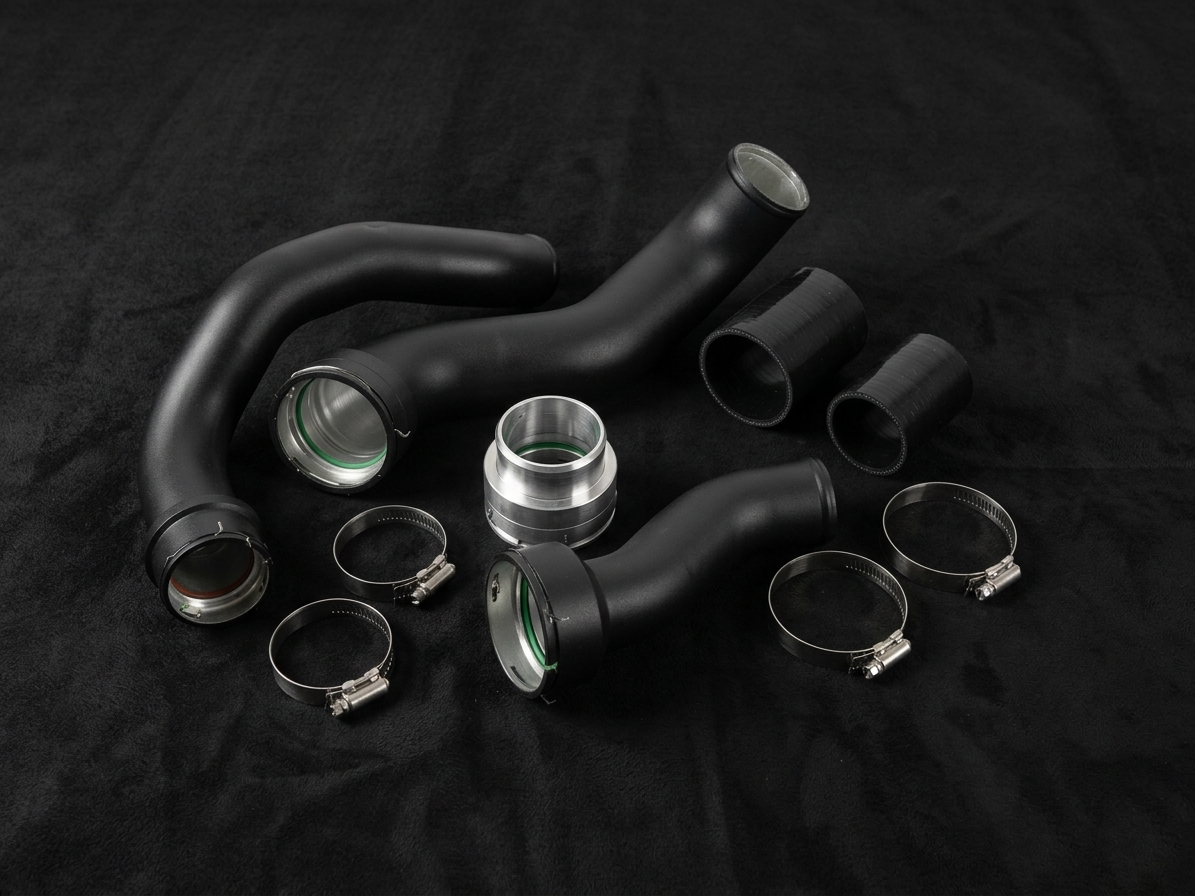

Esse Werks aluminum charge pipe for BMW B48 F-Series and G-Series
ESSE WERKS

Esse Werks Aluminum Charge Pipe — B48

$305.00

The OEM B48 charge pipe is plastic. It cracks where it bends over the engine bay heat shield, splits at the boot connection to the intake manifold, or pops a clamp under sustained Stage 2+ boost. It's a well-documented failure across the B48 tuning community — owners report cracks under sustained Stage 2 driving, and some report failures early in a tuned build.

What this is

A direct one-for-one replacement for the OEM plastic charge pipe. 6061-T6 aluminum, mandrel-bent, hand-TIG-welded at the boss, powder-coated matte black for under-hood heat retention. Reuses the OEM blow-off valve (BOV) and the OEM diverter valve (DV) — no additional purchases required. Same fitting interfaces as OEM at both the turbo outlet and the intake manifold. Drops in.

Why aluminum matters here

The OEM plastic part isn't undersized — it's the right diameter for B48 mass-flow at OEM boost. The failure mode is thermal cycling fatigue: the plastic gets brittle from repeated heat-soak cycles at sustained Stage 2 boost temperatures, and the bend radius where it crosses the engine becomes a stress concentrator. Aluminum doesn't soften or harden across this thermal range — the failure mode is eliminated.

When to install

Before you flash a Stage 2 calibration, not after. We've seen too many customers replace the OEM plastic pipe after it cracks — and the diagnosis pre-failure is rarely clean. Boost dropping intermittently? Could be the pipe leaking before it cracks. Erratic Stage 2 datalogs? Could be the pipe flexing at peak boost. Replace as a pre-emptive part of any Stage 2+ build and avoid the diagnosis cycle.

Pair with

Aluminum charge pipe is Stage 2's required hardware (alongside FMIC upgrade). For builds going to Stage 3 / Phantom I4 S2 turbo hardware, the charge pipe is non-optional — OEM plastic won't survive Stage 3 boost levels for even one hot run.

Install

~1 hour at a competent shop. Disconnect BOV/DV, remove OEM clamps at turbo outlet and intake manifold, swap pipe, reconnect. Re-clamp with the included T-bolt clamps. Verify boost retention with a pressure test before driving.

What's in the box

  • Aluminum charge pipe (6061-T6, powder-coated matte black)
  • Stainless T-bolt clamps for both fitting interfaces
  • Reuses OEM BOV gasket and OEM hardware

This part is the charge pipe-side Core of every B48 Stage 2 build. The Stage 2 Kit — B48 packages the matched parts + calibration for 8% under à la carte.

Fits engine B48
Fits chassis F22 F23 F30 F31 F32 F33 F34 F36 F39 F48 G01 G02 G20 G21 G22 G23 G26 G29 G30 G31 G42 F54 F55 F56 F57 F60
Category Induction
Manufacturer Esse Werks
Install effort ~1.0 hours

Ships from Boca Raton, FL.
